Description
STANDARD EQUIPMENT
100% Hydraulic
3 Rolls driven

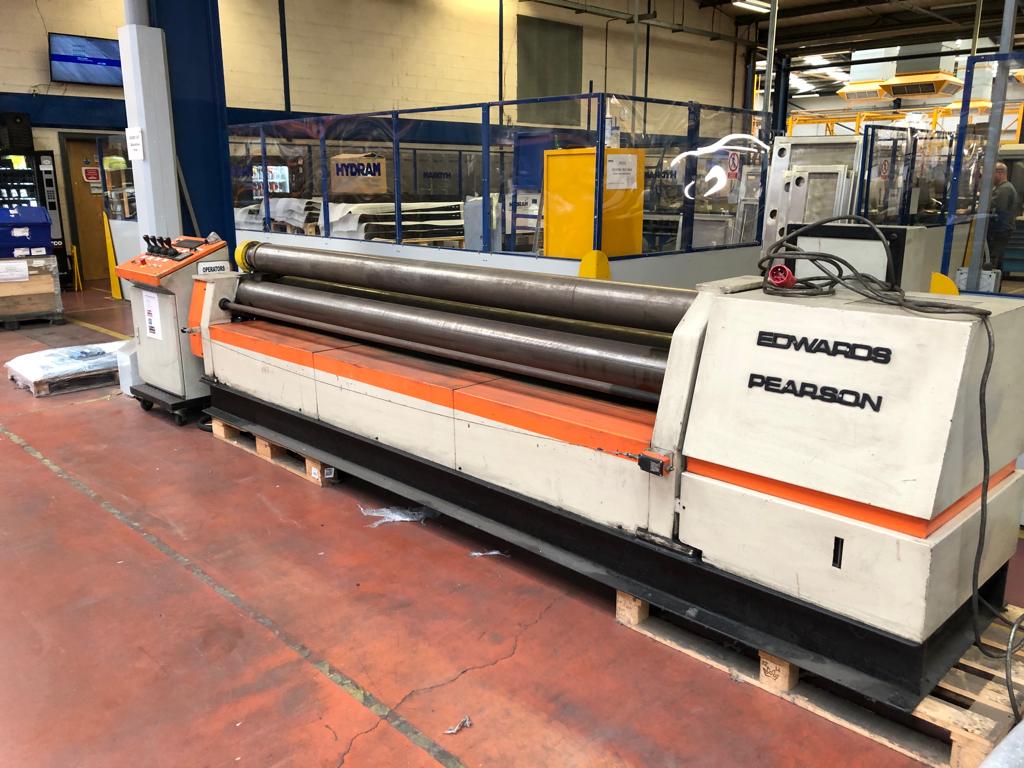

Double pitch plate bendingmachine
Wide opening between therolls
Easy cone rolling
No pit
3 rolls driven by independenthydraulic motors

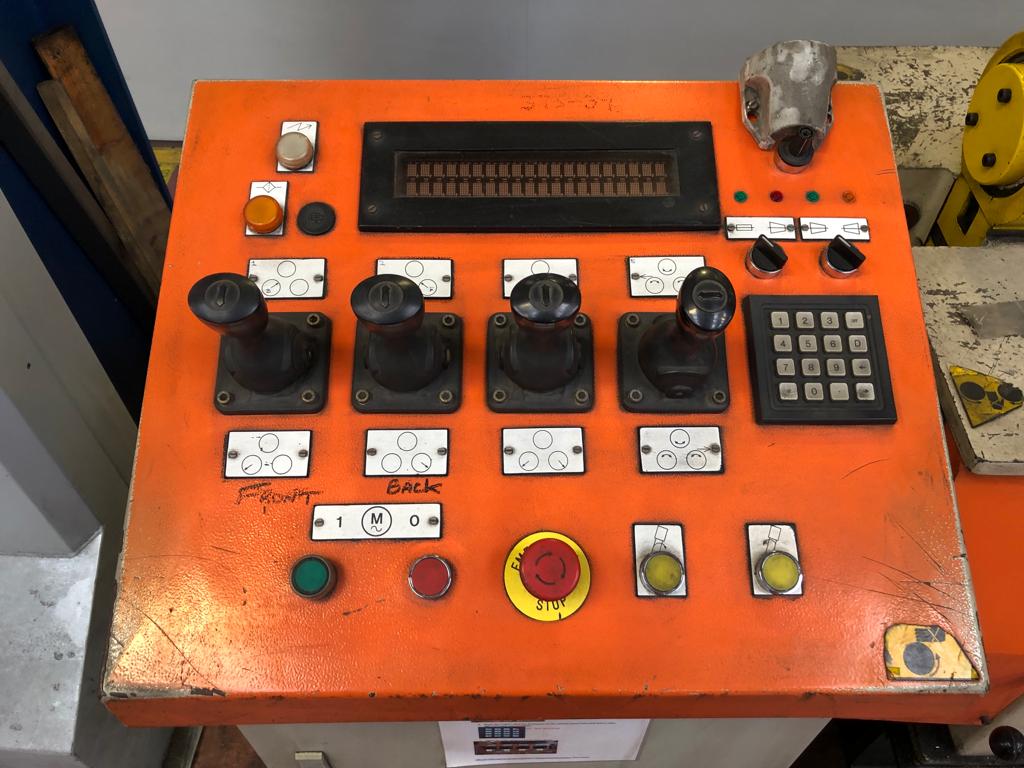

Digital displays for controlling theposition of prebending rolls
Automatic and hydraulicsynchronization of roll’s parallelism
Progressives movements orproportional regulation withDanfoss ® motors and distributors
Manual centralized lubrication
Tilting device for prebending rolls
Cone device (thrust) for conicalbending(up to RCS 170)
4 grooves at 90° on each lower roll(easy positioning of metal sheets)
TECHNICAL INFO
Bending Length: 3100mm
Top Roll Diameter: 170mm
Maximum Thickness: (1.3 x D):Bending – 3mm
Maximum Thickness: (1.3 x D):Pre Bending – 2mm
Maximum Thickness: (5.0 x D):Bending – 4mm
Maximum Thickness: (5.0 x D):Pre Bending – 3mm
Motor Power: 4Kw
