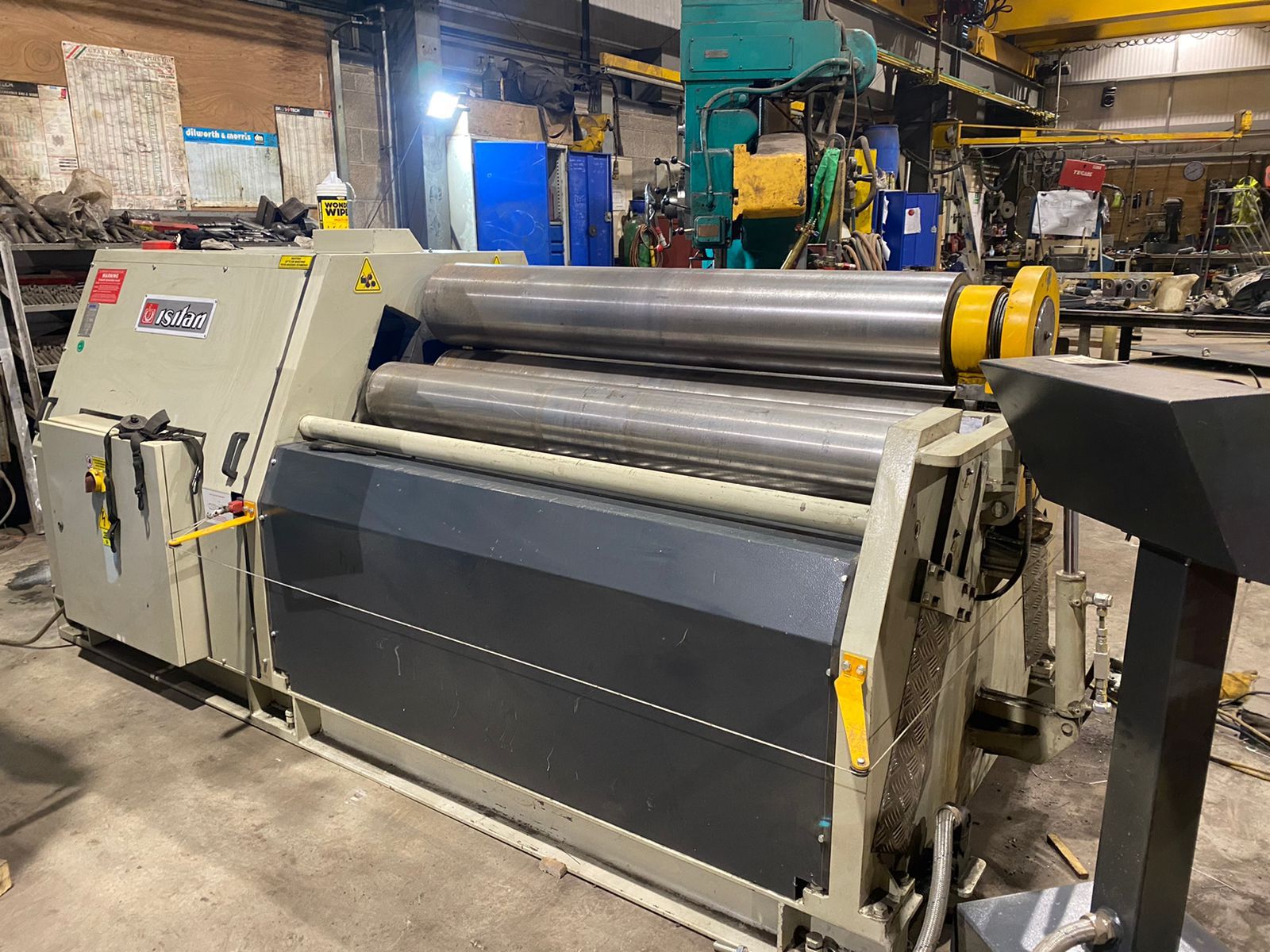

Isitan 4R HMS 1550 Bending Roll

Isitan 4R HMS 1550 Bending Roll

Features:
  • Ferrules in full circle or varying radiuses or conical shapes
  • Overload Protection
  • Three digital readouts for easy roll positioning
  • Hydraulic Drop-End for easy removal of finished ferrule

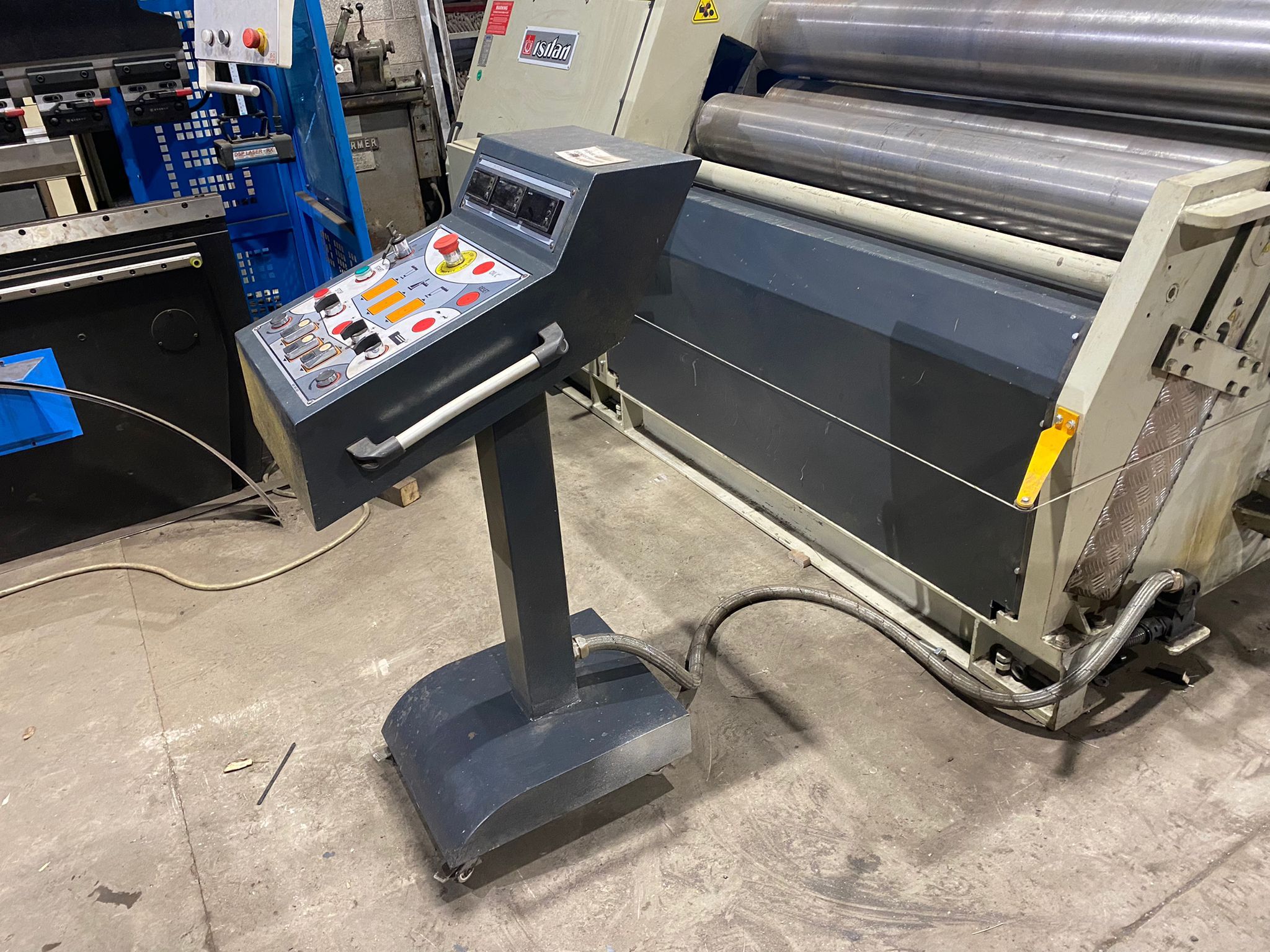

  • Easy operation with mobile control panel with push buttons
  • Welded steel frames
  • Conical bending device
  • Hydraulic balancing system
  • Very suitable for light and medium plates,aluminum or stainless steel
  • Top roll is powered by electrical motor and planetary gearbox. Bottom roll powered with cardan joint system.
  • Hydraulic DropEnd for easy removal of finished ferrule
  • Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
  • Built according to EC Safety Directives and has CE Mark
  • Lateral rolls move linear way with hydraulic pistons
  • Conical bending device with ball bearing
  • Main motor with Brake System
  • SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Description

Bending Length: 1550 mm
Central Rolls: 250 mm
Side Rolls: 200 mm
Motor Power: 5 kW Main Motor
Working Speed: 5 m/min
Hydraulic Lateral Side Supports: Yes
Length: 3500 mm
Width: 1500 mm
Height: 1370 mm
Weight:  4650 Kg
Y.O.M: 2020
Price: £20,000.00

N.B Selling on behalf of a customer.
