Description

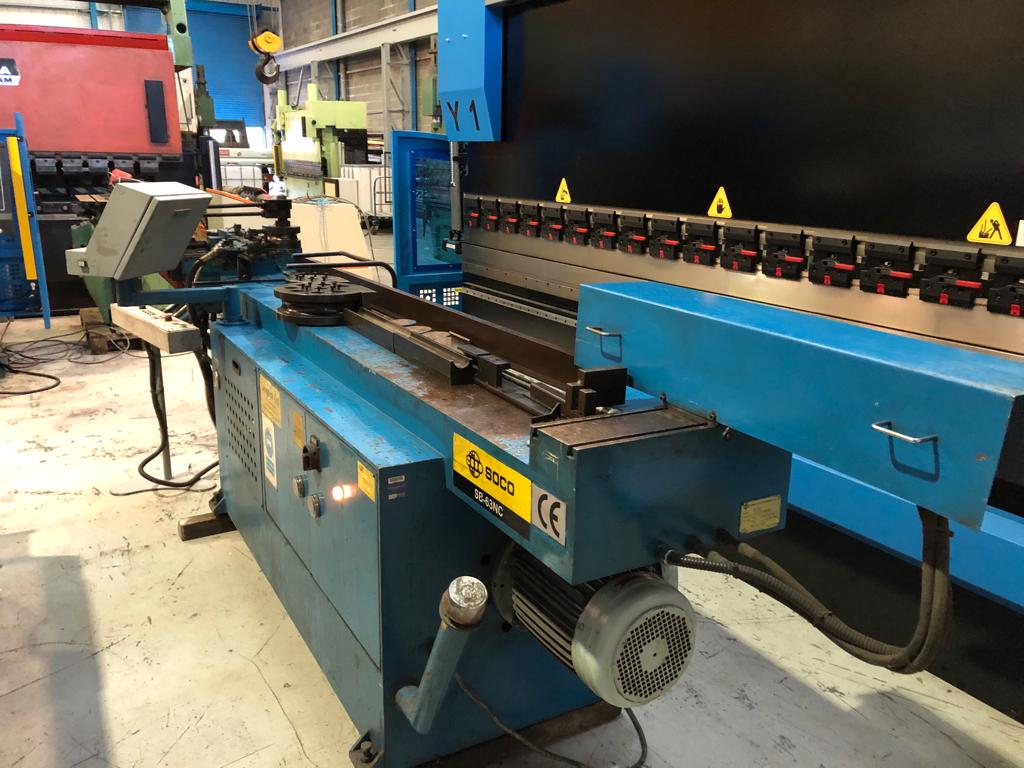

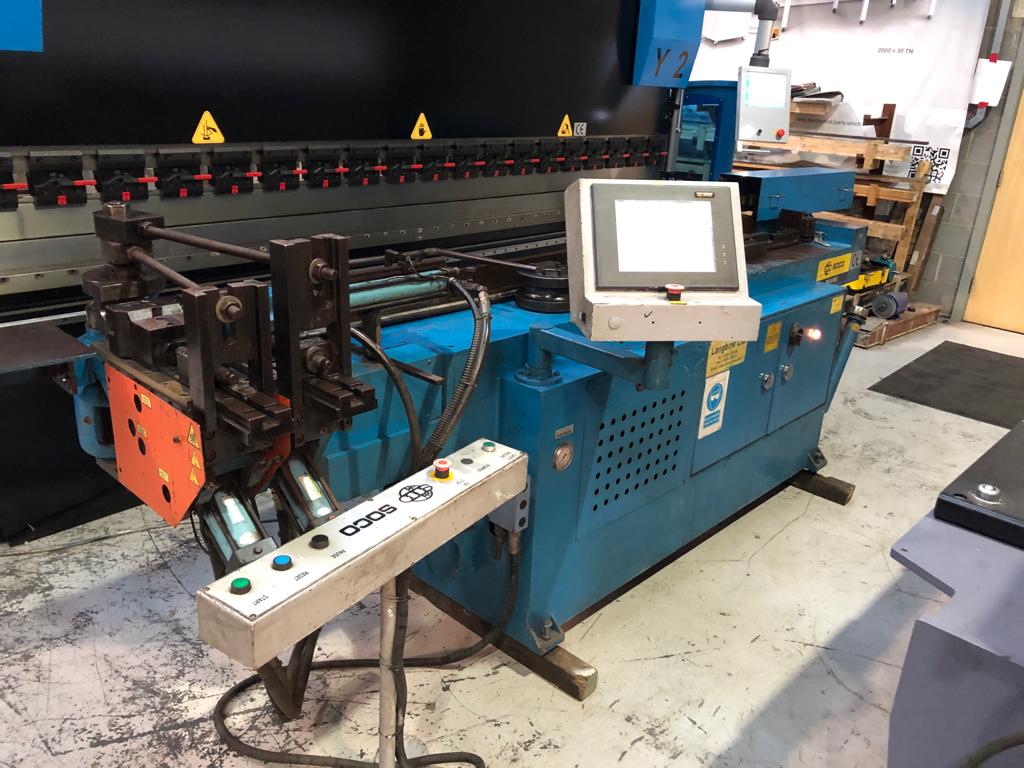

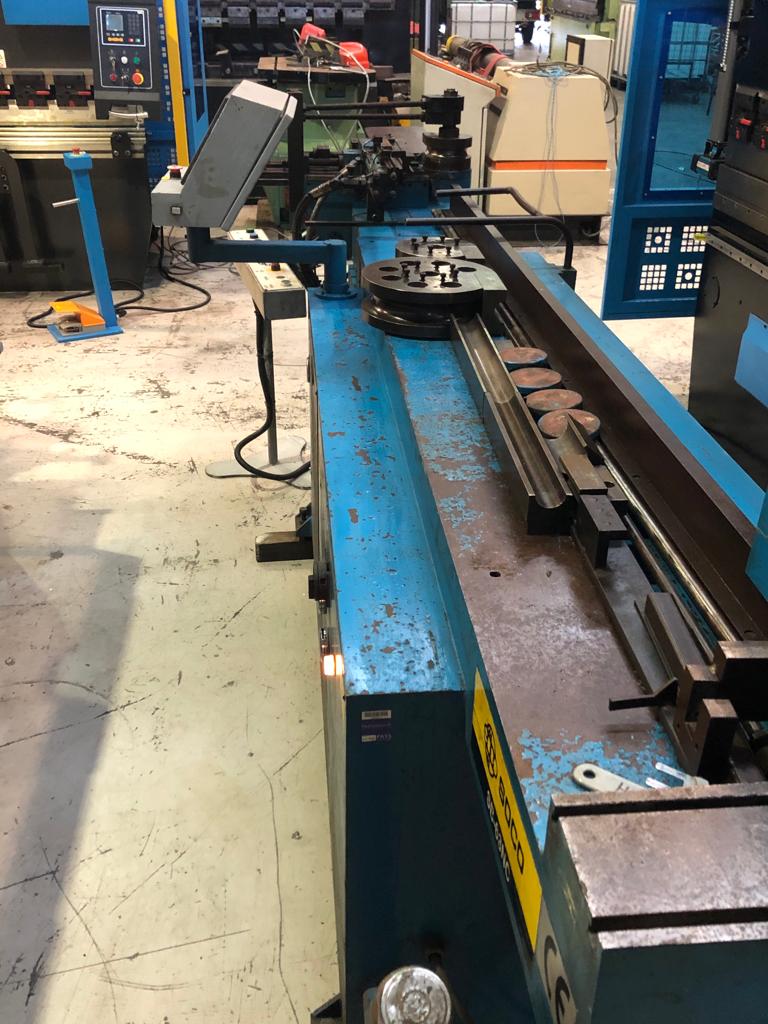

CAPACITY UP TO OD 63.5 MM. NC CONTROLLED WITH TOUCH SCREEN

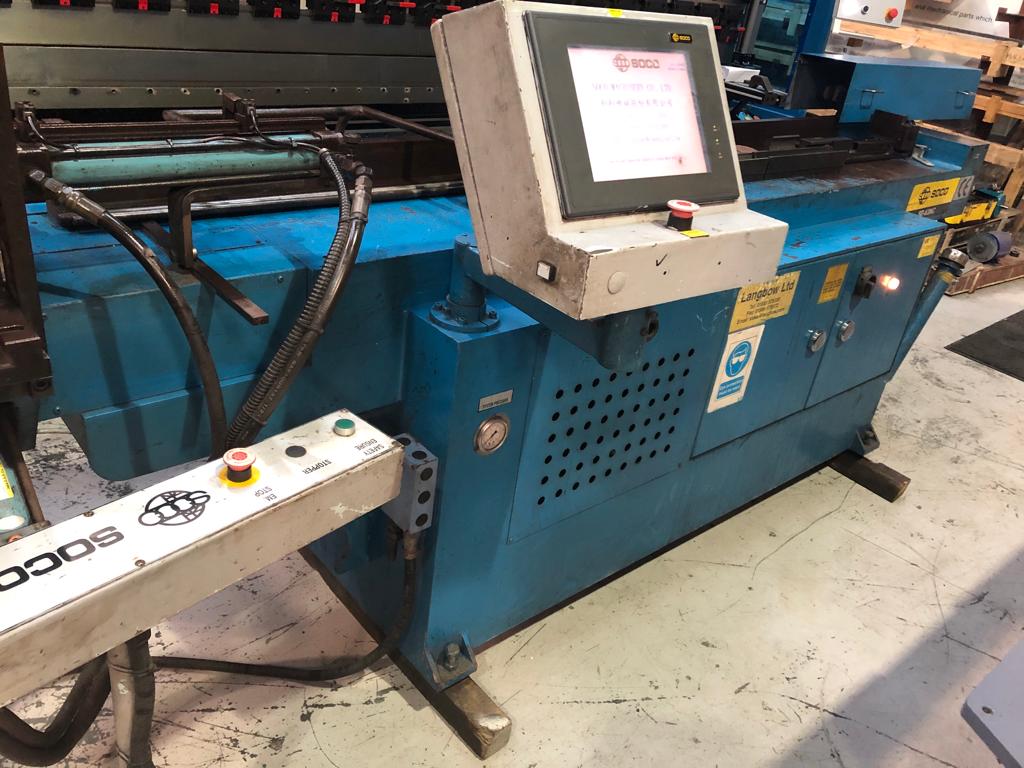

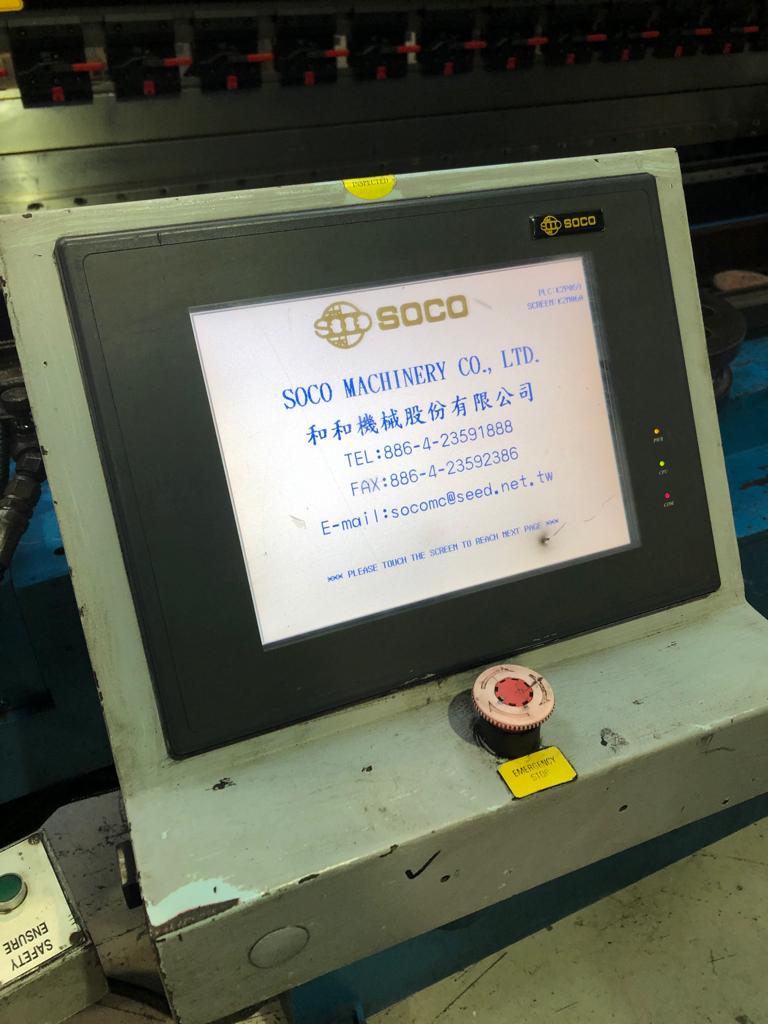

- NC control unit with Touch Screen
- Up to 9 programmable bends
- Easy operation interface and enable easy data input
- Large program capacity storage
- High bending accuracy up to +/- 0.15°
- Self diagnosis & error messages on-screen display

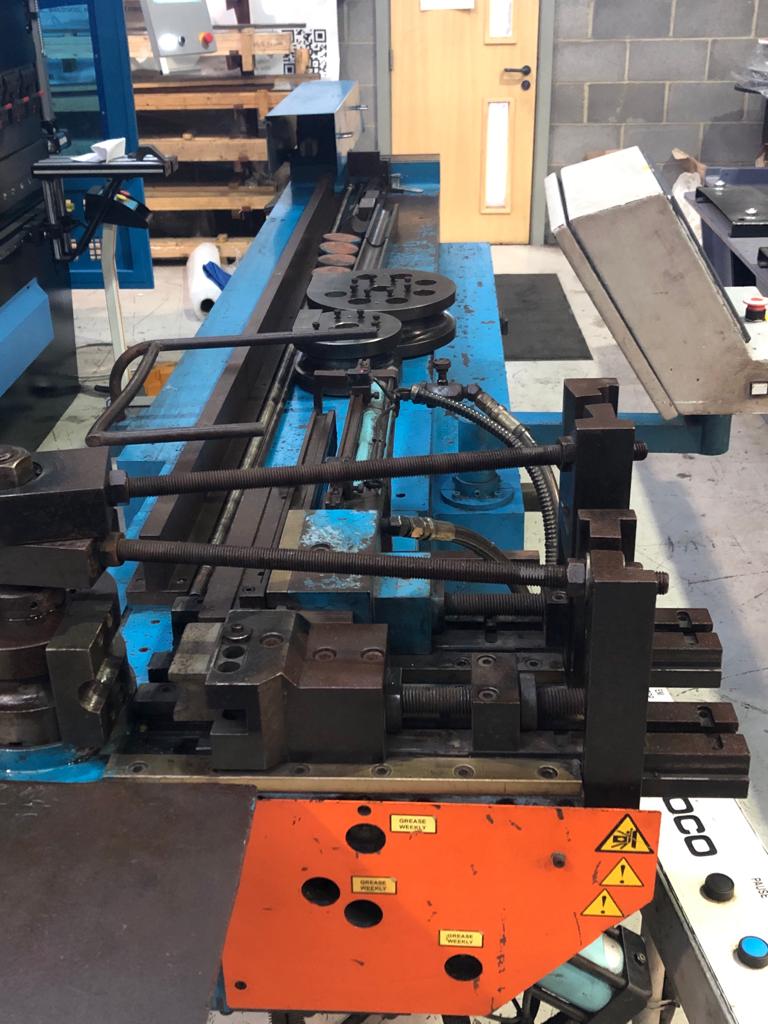

- Hydraulic clamping with optional pressure die assist
- Suitable for various materials such as steel, stainless, aluminum and copper
- 3 Dies including (handrail sizes)
| Mild Steel Capacity (mm) (CLR 1.5D) | 63.5 Ø x 2.5t |
| Stainless Steel Capacity (mm) (CLR 1.5D) | 63.5 Ø x 1.6t |
| Rectangular Steel Tube (mm) CLR 2.5D) | 60 x 30 x 3.2t |
| Max Tube Length with Mandrel (mm) | 2600mm |
| Max Bending Radius (mm) | 250 mm |
| Max Bending Angle | 185° |
| Number of Bends Per Tube | 9 |
| Gross Weight | 1650KG |
| Length x Width x Height | 3800 x 850 x 1030 mm |

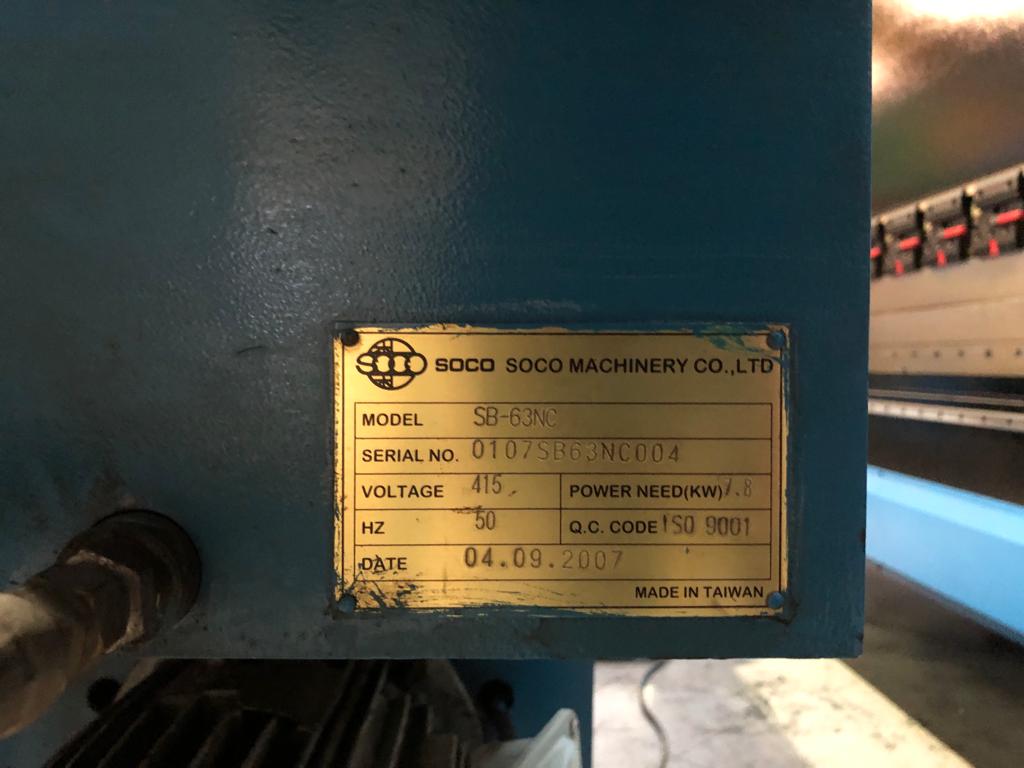

| Year of Manufacture | 2007 |
