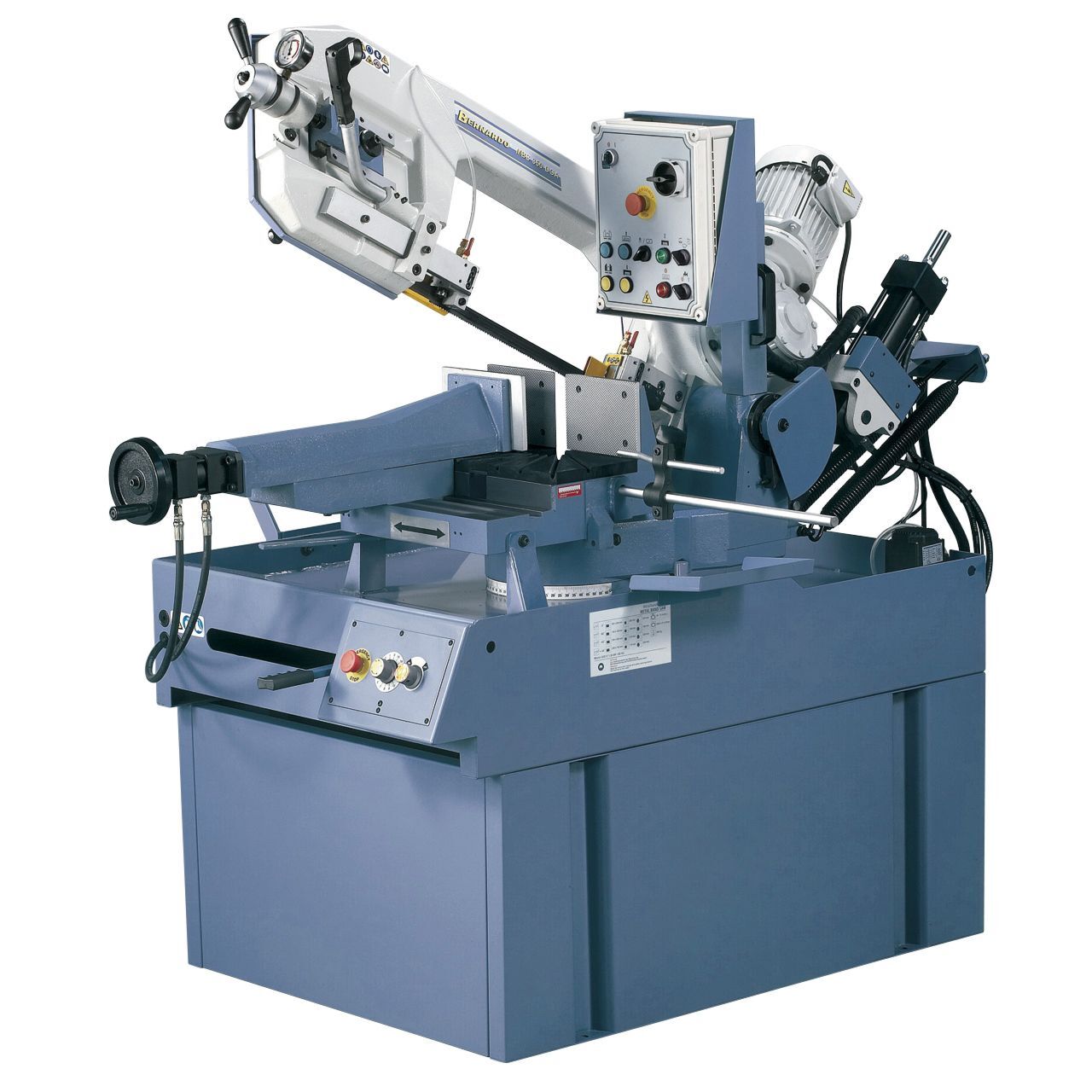

MBS 350 DGA-V – Semi Automatic Double Mitre Bandsaw

Properties

  • The semi-automatic function greatly increases productivity
  • Optional manual or semi-automatic operation

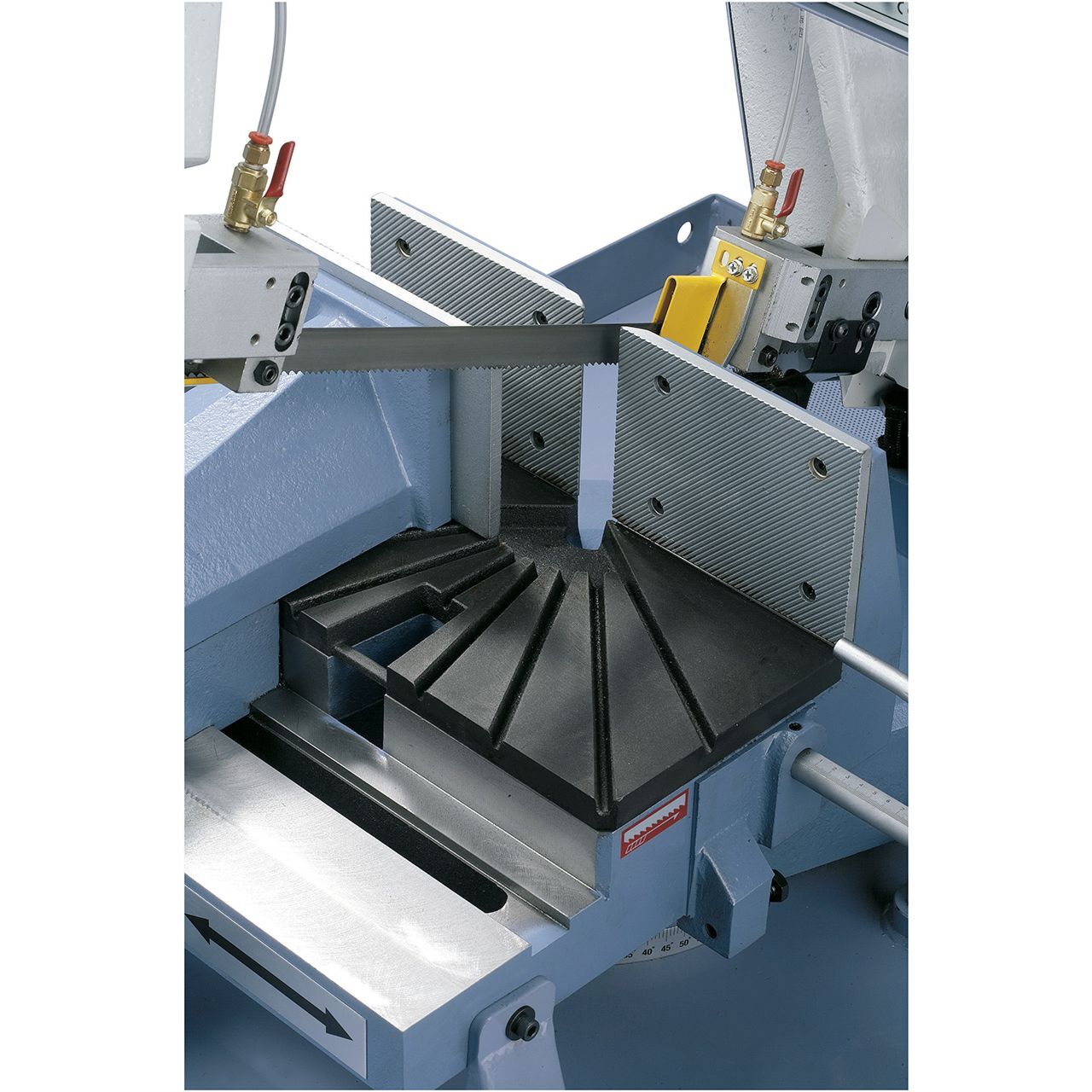

  • Relocatable vice, manual or hydraulic clamping
  • Saw frame tilts (-45° up to +60°), angle can be read on scale
  • Professional band saw with unbeatable price-to-performance ratio
  • Smooth and vibration-free run guarantees high cutting accuracy
  • Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
  • Adjustable hydraulic cylinder for support pressure regulation of the saw frame



Semi-automatic operating mode:

  • Hydraulic clamping of the vice
  • Hydraulic lowering of the saw frame
  • Lifting of the saw frame

Description

Standard accessories

  • Bandsaw blade
  • Material fence
  • Stand

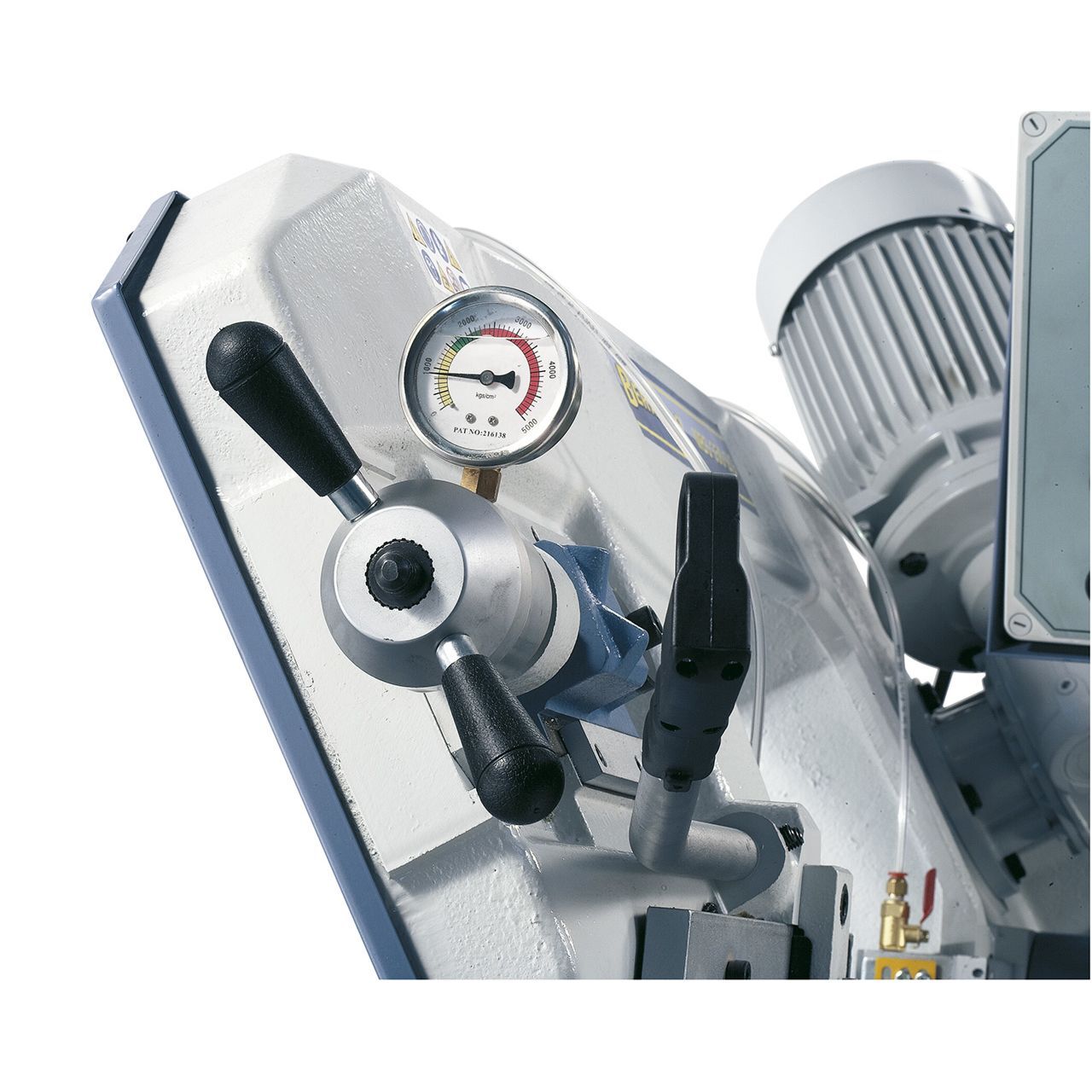

  • Manometer for blade tension

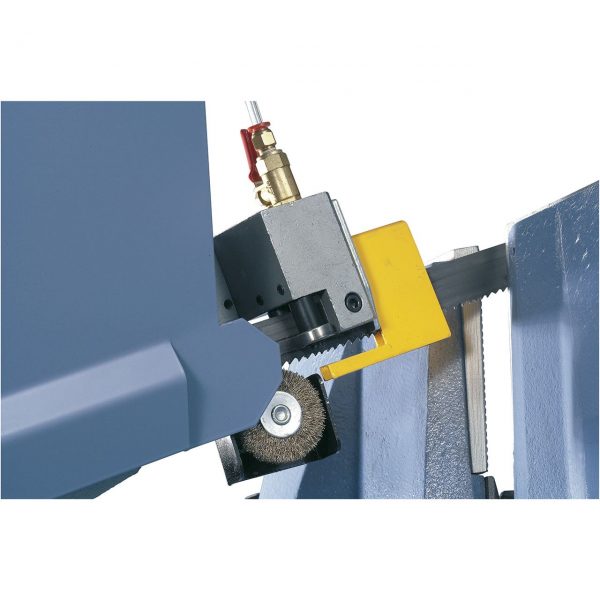

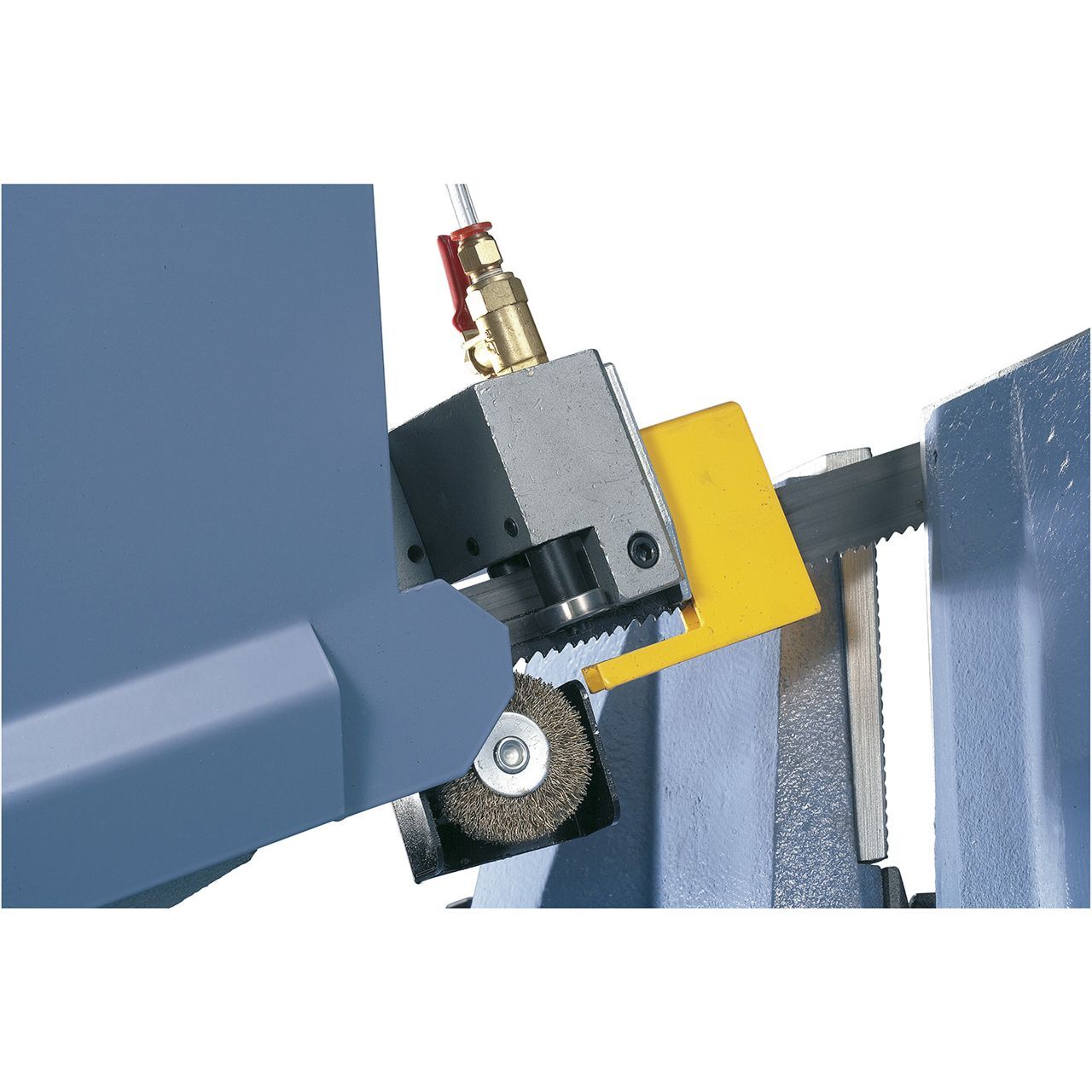

  • Bandsaw blade guiding with carbide inserts
  • Hydraulic quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down

Technical specifications

Cutting capacity round / square 90° 270 mm / 260 x 260 mm
Cutting capacity flat 90° 350 x 240 mm
Cutting capacity round / square 45° R 230 mm / 210 x 210 mm
Cutting capacity flat 45° R 230 x 150 mm
Cutting capacity round / square 45° L 200 mm / 170 x 170 mm
Cutting capacity flat 45° L 200 x 140 mm
Cutting capacity round / square 60° R 140 mm / 140 x 140 mm
Working height 950 mm
Bandsaw blade dimension 2925 x 27 x 0,9 mm
Cutting speeds, stepless 20 – 90 m/min
Coolant pump S1 100% 100 W
Motor power output S1 100% 2,2 kW
Motor power input S6 40% 3,0 kW
Voltage 400 V
Machine dimensions (L x D x H) 2010 x 1230 x 1820 mm
Weight approx. 600 kg
