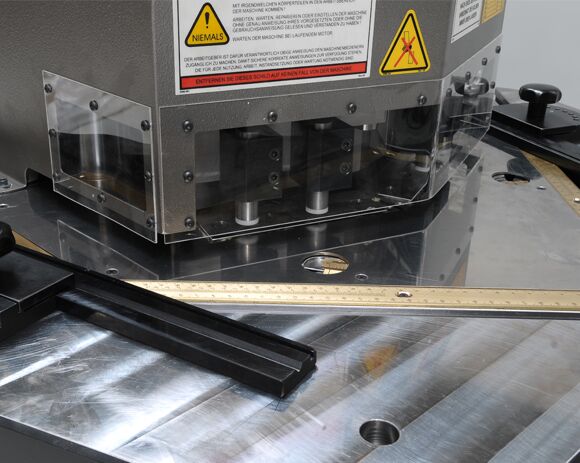

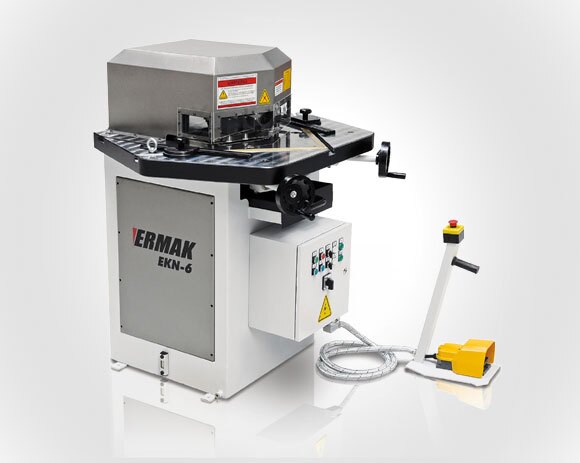

EKN-6 – Hydraulic Corner Notcher

EKN-6 – Hydraulic Corner Notcher

Ermak EKN-6 variable rake hydraulic corner notchers have a strong frame with its statically and dynamically rigid steel table and top beam material. T slot top table realizes precise cuttings and there is no need for alignment for different sheet thicknesses by means of automatic blade gap adjustment. EKN series perform frequent cutting repeatability via 4 hydraulic hold-down cylinders.

Sales: +44 (0)1670 735434


Make a selection advantage

Designed and manufactured according to the requirement Hydraulic Corner Notching EKN-6 machine you will have the big advantageous to best choose for your business.

Customer benefits

  • Strong body provide ease of use.
  • Hoerbiger hydraulic system which does not require maintenance.

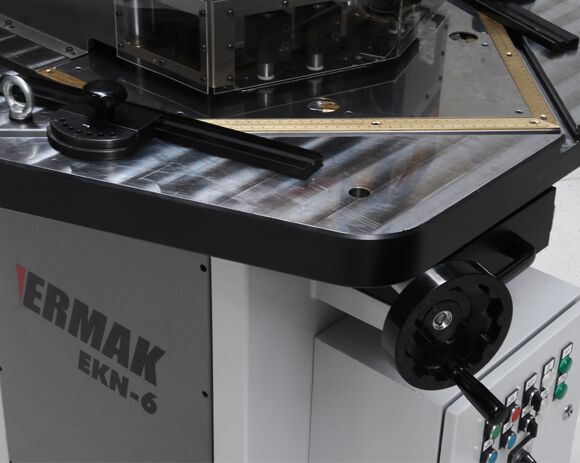

  • Wheel control lever allows quick and easy adjustment.
  • High quality components.
  • Automatic blade gap adjustment system which does not require setting.
  • Electrical current options for every country.
  • Minimum space requirement with compact desing.
  • Durable choice for your precise cutting works.
  • Easy installation and training.
Standard Features
  • Cutting angle adjustment from 30o to 140o by hand wheel.
  • Statically and dynamically rigid T slot table and top beam material.
  • Automatic blade gap adjustment.
  • Long life-time and easy operation.
  • Removable foot pedal.
  • Adjustable stroke.
  • Plexiglas protections.

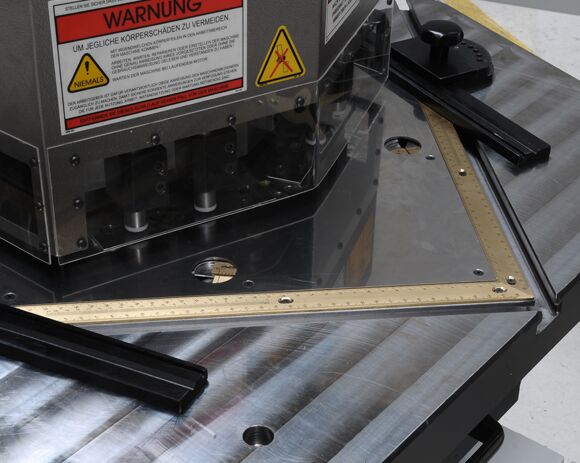

  • Fast adjustable cutting angles by rulers and set squares.
  • 4 pieces hold-down cylinders to fix the sheets during cutting.
  • Scrap box.
  • Maintenance-free Hoerbiger hydraulic system.

Cutting Capacity

Mild Steel ST37 : 6 mm (from 60° to 140°)
Mild Steel ST37 : 4 mm (from 30° to 59°)
Stainless Steel : 3 mm (from 60° to 140°)
Stainless Steel : 2,5 mm (from 30° to 59°)

Technical Information

Main Motor : 4 kW
Working Pressure : 200 bar
Oil Capacity : 48 lt
Table Dimension : 1150 x 610 mm
Cutting Angle : 30o – 140o
Blade Length : 200 x 200 mm
Max. Stroke : 30 / min.


Length : 1150 mm
Width : 1156 mm
Height : 1440 mm
Weight : 1050 kg
