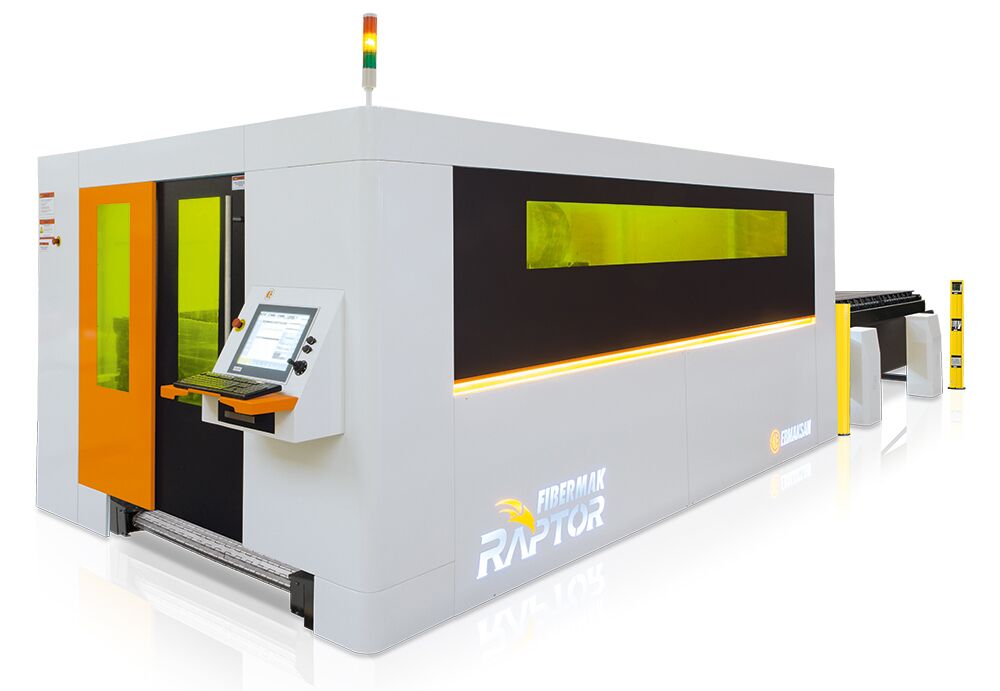

FIBERMAK RAPTOR – Fiber Laser Cutting Machine

FIBERMAK RAPTOR – Fiber Laser Cutting Machine

RAPTOR Fiber Laser Cutting machine has been produced to be an alternative solution without compromising the cutting quality by observing a more modular and ergonomic design compared to the standard Fibermak, with its outer structure that takes less space.

It is offered to our customers as an economical solution with 0.5 G acceleration, 50 mt/min speed, single cut table, manual focus cutting head and relieved body structure.

Ermaksan Laser Brochure

Description

RAPTOR GENERAL SPECIFICATIONS:

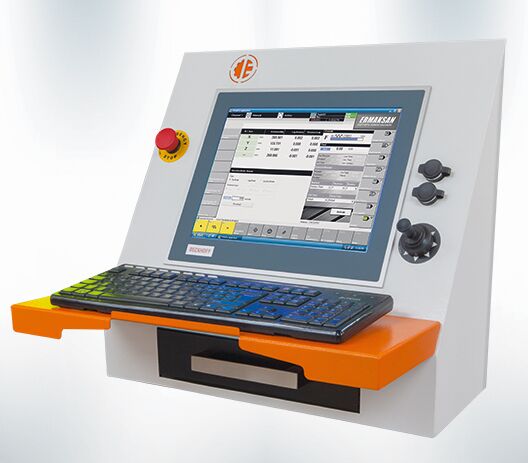

CONTROL PANEL
– The unit which controls the system and sends the user commands to the machine.
– Control panel is resistant to various environmental conditions. Shock, dirt, humidity, temperature, etc.
– It is used as a touch screen and an external keyboard is available.
– With the speed adjustment potentiometer on the control panel, you can increase and decrease the axis speed in the working area.

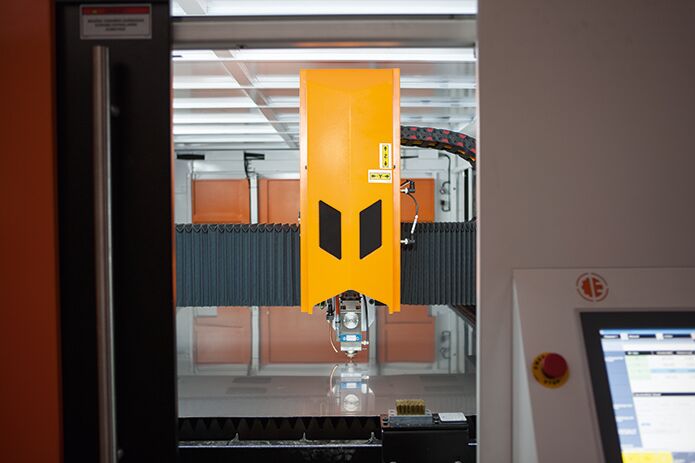

CUTTING HEAD SPECIFICATIONS
– Manually adjustable focus lens
– Precision height control
– Lower protection glass

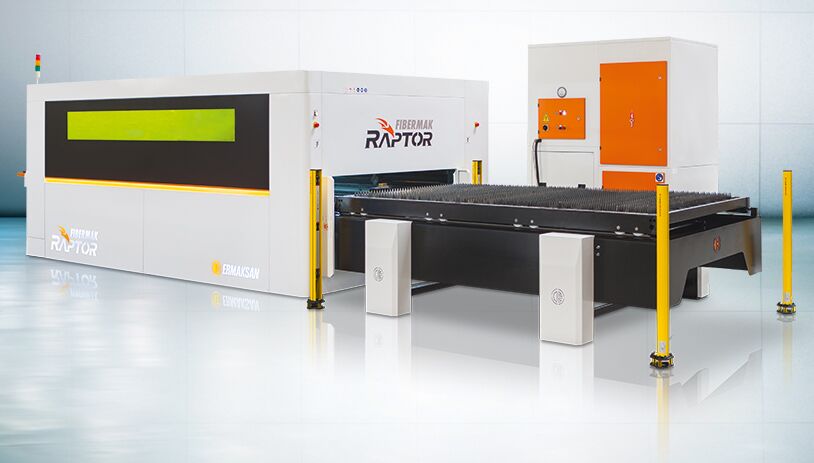

– You may perform uninterrupted cutting operations thanks to the shuttle table consisting of two moving tables

Key Benefits of the CNC Laser Raptor

  • HIGH PRECISION CUTTING
    Thanks to ultra speed EtherCAT communication technology, the drive motor and all control units apply the values set witn the highest precision and speed. Thus, you may obtain perfect cuts with micron precision on time.
  • SERVO MOTOR TECHNOLOGY
    Single cord servo motors with premium technology are used. The mess created by extra cables is reduced and high control capability is ensured.
  • USER-FRIENDLY INTERFACE
    Your work is much easier with the user-friendly interface designed by Ermaksan engineers. You may start an automatic cutting operations with only a few steps, and monitor the active job before and during cutting operation thanks to the NC Graphics feature.
  • COMPACT STRUCTURE
    It features a modular and ergonomic design that is built with optimum compatibility for the physical environment and the operation by operator in order to meet the user requirements in the best possible way.
  • COMPLIANCE WITH INDUSTRY 4.0
    Fibermak Raptor is offered as compliant with industry 4,0 By requesting this feature, which is optionally available on your machine, you may maximize your productivity with smart production processes.
  • CONTROL PANEL
    Provides the operator perfect comfort with its large display benefiting from the full graphics interface.
