RD 820 x 32 Radial Arm Drill

RD 820 x 32 Radial Arm Drill

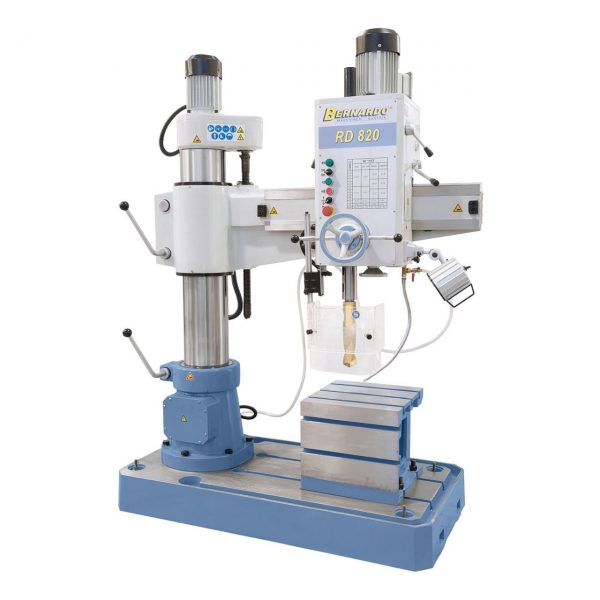

The radial drilling machine RD 820 x 32 is a clearly arranged machine with high performance and easy to use. This model is ideal for complex tasks such as drilling, countersinking, reaming and thread cutting.

Standard accessories

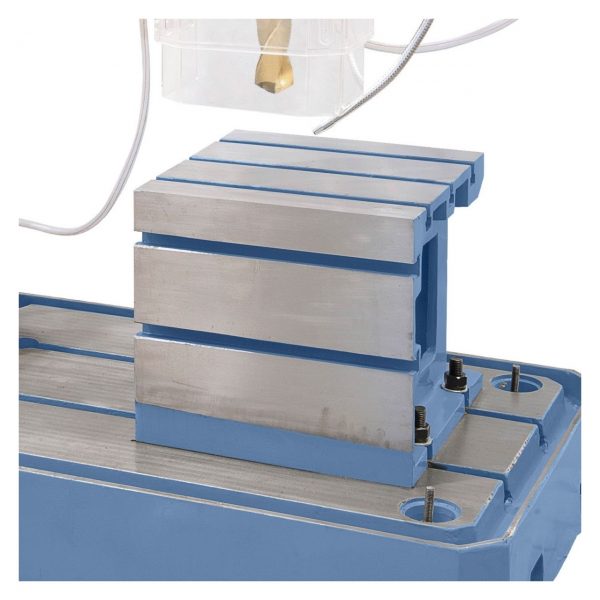

  • Box table
  • Coolant device
  • LED working light
  • Lifting motor
  • Height adjustable protective cover
  • Operating tool

Description

Properties

  • Mechanical adjustment of the tilting movement of the support and the adjustment of the headstock
  • Smooth surface of column guarantees easy movement of arm
  • Solid construction allows smooth running
  • Easy adjustment to clamped workpiece

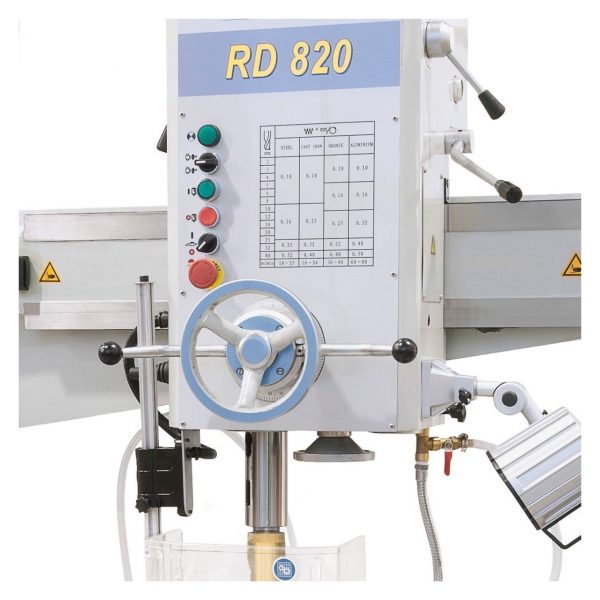

  • User-friendly control elements on front of machine
  • Electric height adjustment of swivel arm
  • Wide speed range allows ideal speed settings
  • Thread cutting takes place by change of spindle rotation
Drilling capacity max. 32 mm
Thread cutting max. M24
Distance spindle to column min./max. 310 – 820 mm
Vertical movement of the support 500 mm
Travel of drill head (horizontally) 510 mm
Spindle stroke 250 mm
Spindle speeds (6) 75 – 1220 rpm
Morse taper MT 4
Feed range 0,1 / 0,16 / 0,25 mm/rev.
Distance spindle to box table 16 – 515 mm
Distance spindle to base 370 – 870 mm
Box table (L x W x H) 400 x 400 x 350 mm
Clamping area base 825 x 690 mm
Column diameter 200 mm
Lifting motor 0,75 kW
Motor power 1,5 kW
Machine dimension (W x D x H) 1470 x 750 x 2100 mm
Weight approx. 1200 kg
