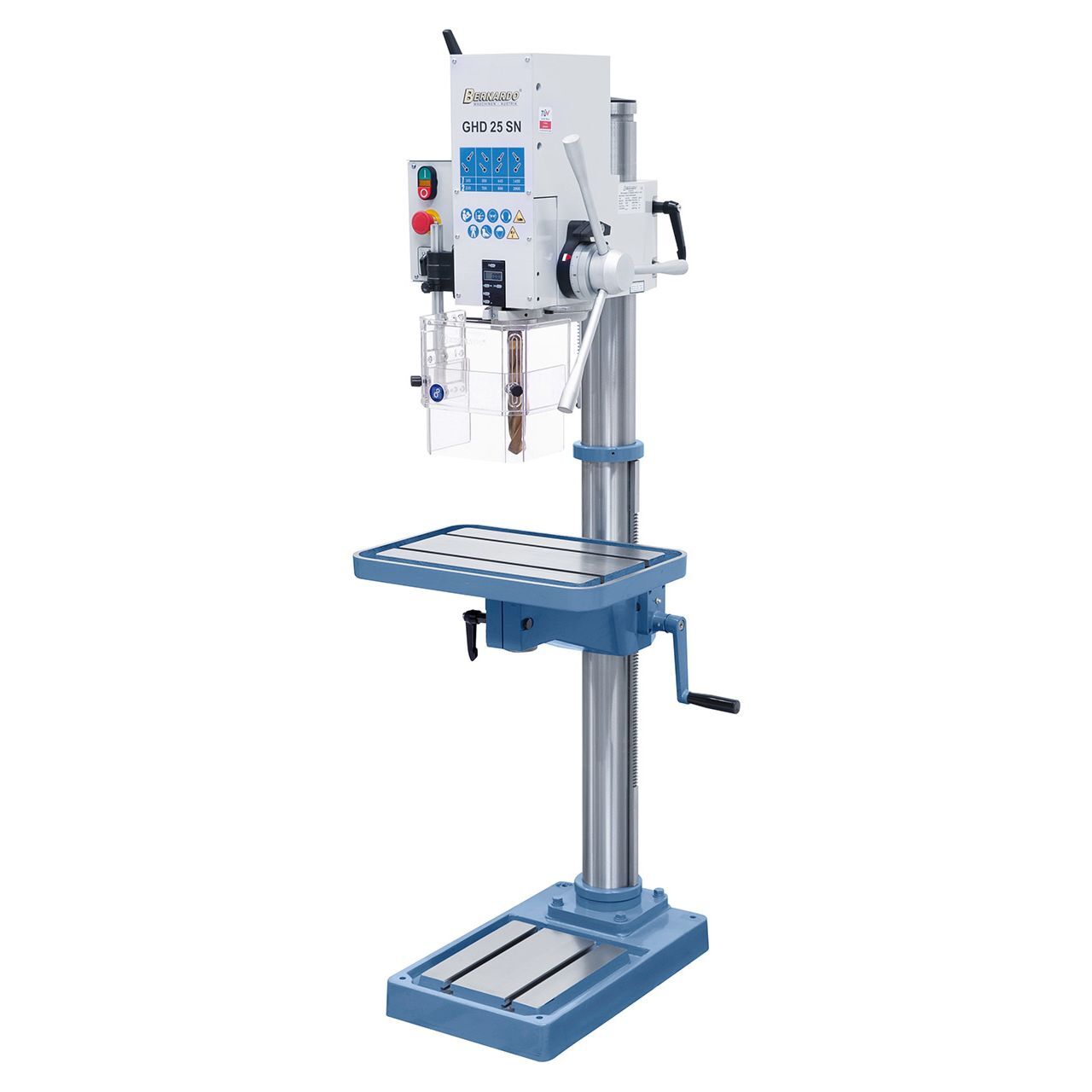

GHD 25 SN with digital drill depth indication

GHD 25 SN with digital drill depth indication

Standard accessories

  • Keyless drill chuck 1 – 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • Left and right turning
  • Height adjustable protective cover

https://www.bernardo.at/en/ghd-25-sn-mit-digitaler-pinolenhubanzeige.html

Description

Properties

    • Helical gears in combination steel against reinforced fiber material ensures high efficiency and smooth run
    • Treated machine base for clamping of extraordinary oversize workpieces
    • Gear head and work table can be swivelled 360° and adjusted in height
    • High-quality ball bearings allow for high concentricity

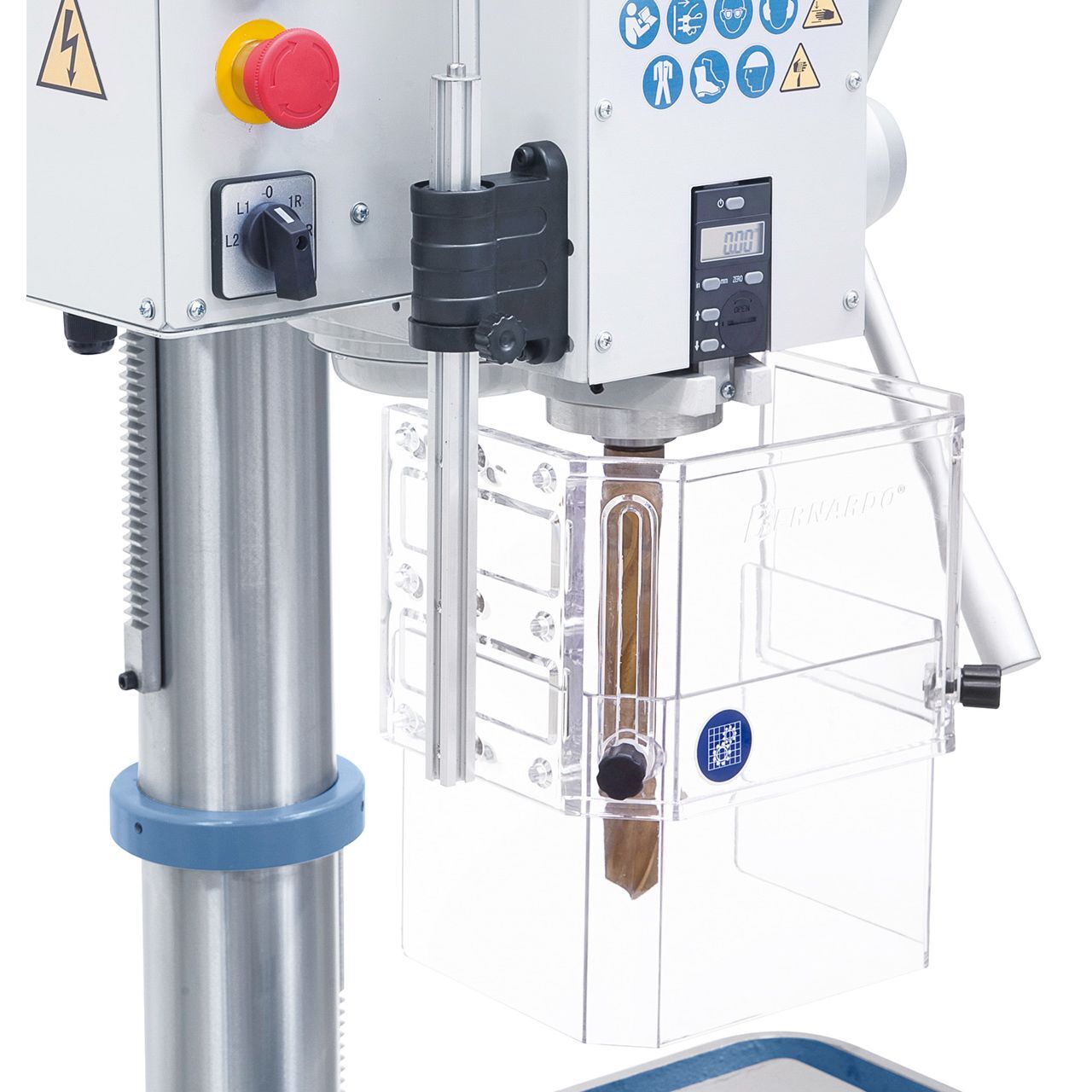

    • Adjustable drill depth stop with mm-scale

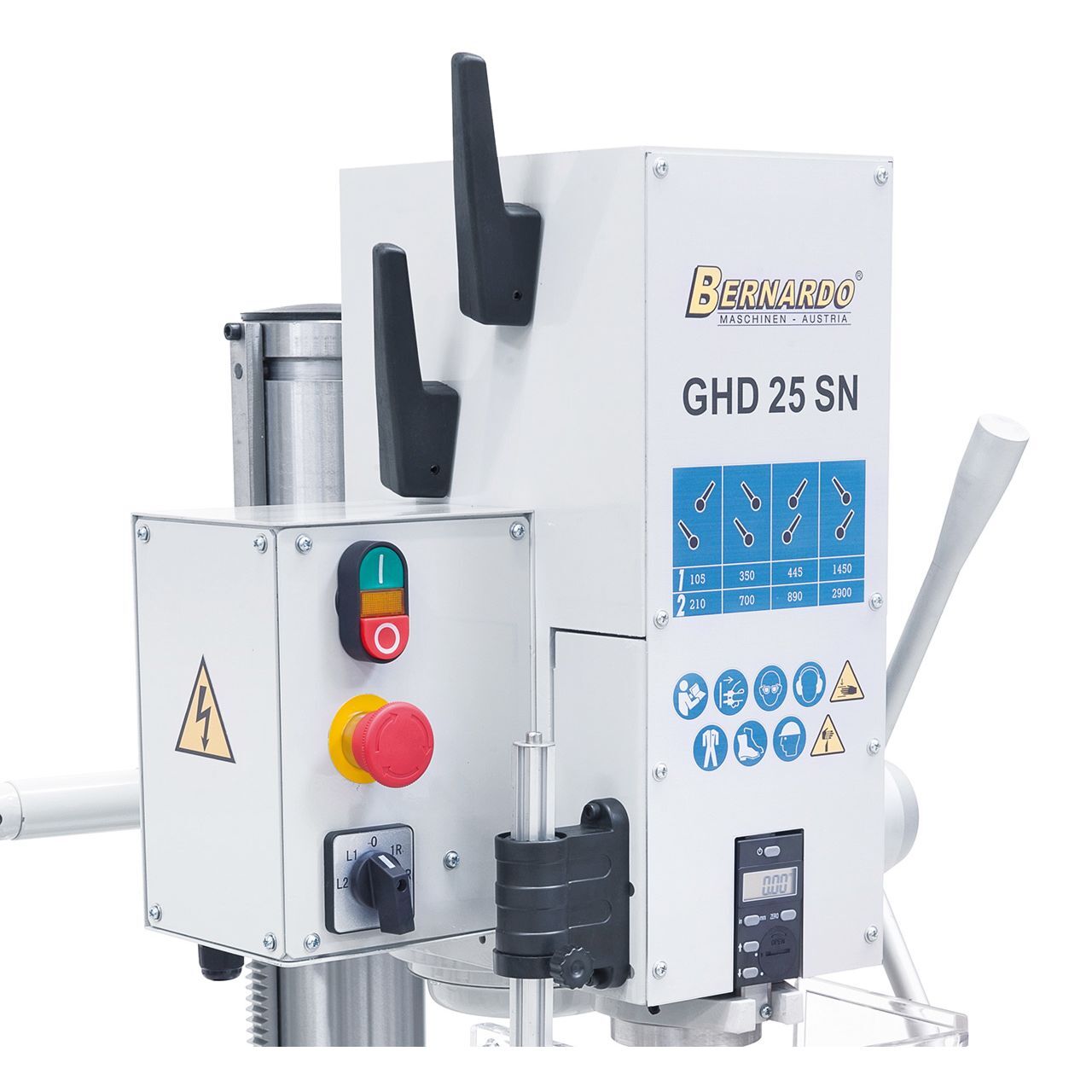

    • Rotation switch for right and left turning for thread cutting
    • Helical-tooth gearbox for optimal power transmission
    • Solid, polished steel column, designed for high demands
    • Powerful 2-step drive motor allows for 8 different speed settings
Drilling capacity max. 25 mm
Thread cutting max. M10
Drill chuck 1 – 16 mm / B 16
Morse taper MT 3
Spindle speeds (8) 105 – 2900 rpm
Distance spindle to column 255 mm
Distance spindle to table max. 820 mm
Distance spindle to base 1235 mm
Spindle stroke 120 mm
Column diameter 100 mm

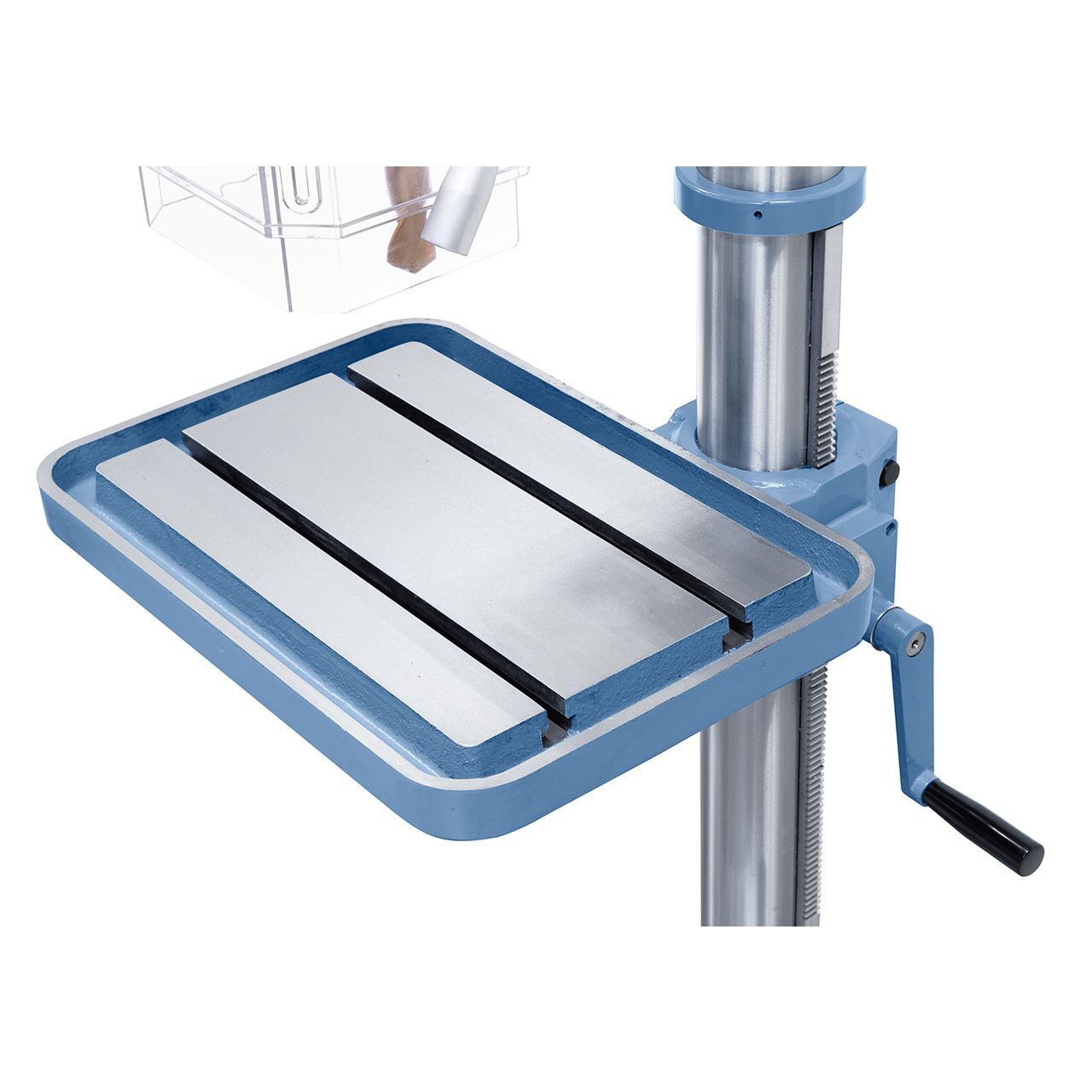

Table size / T-slot size 500 x 350 mm / 14 mm
Working surface of base 250 x 290 mm
Motor power output S1 100% 0,65 kW / 1.2 kW (400 V)
Motor power input S6 40% 0.90 kW / 1.7 kW (400 V)
Machine dimension (W x D x H) 600 x 600 x 1800 mm
Weight approx. 200 kg
