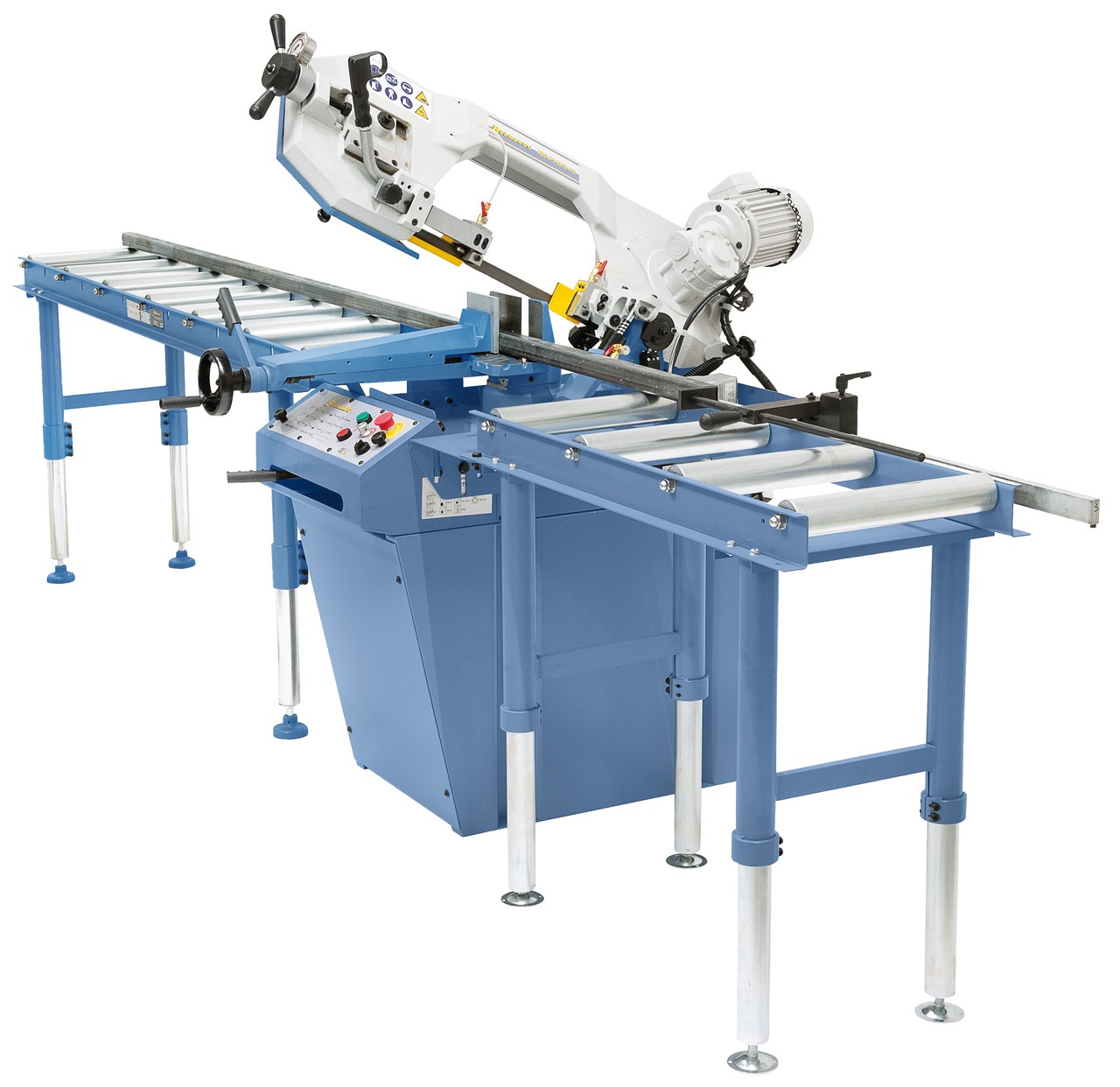

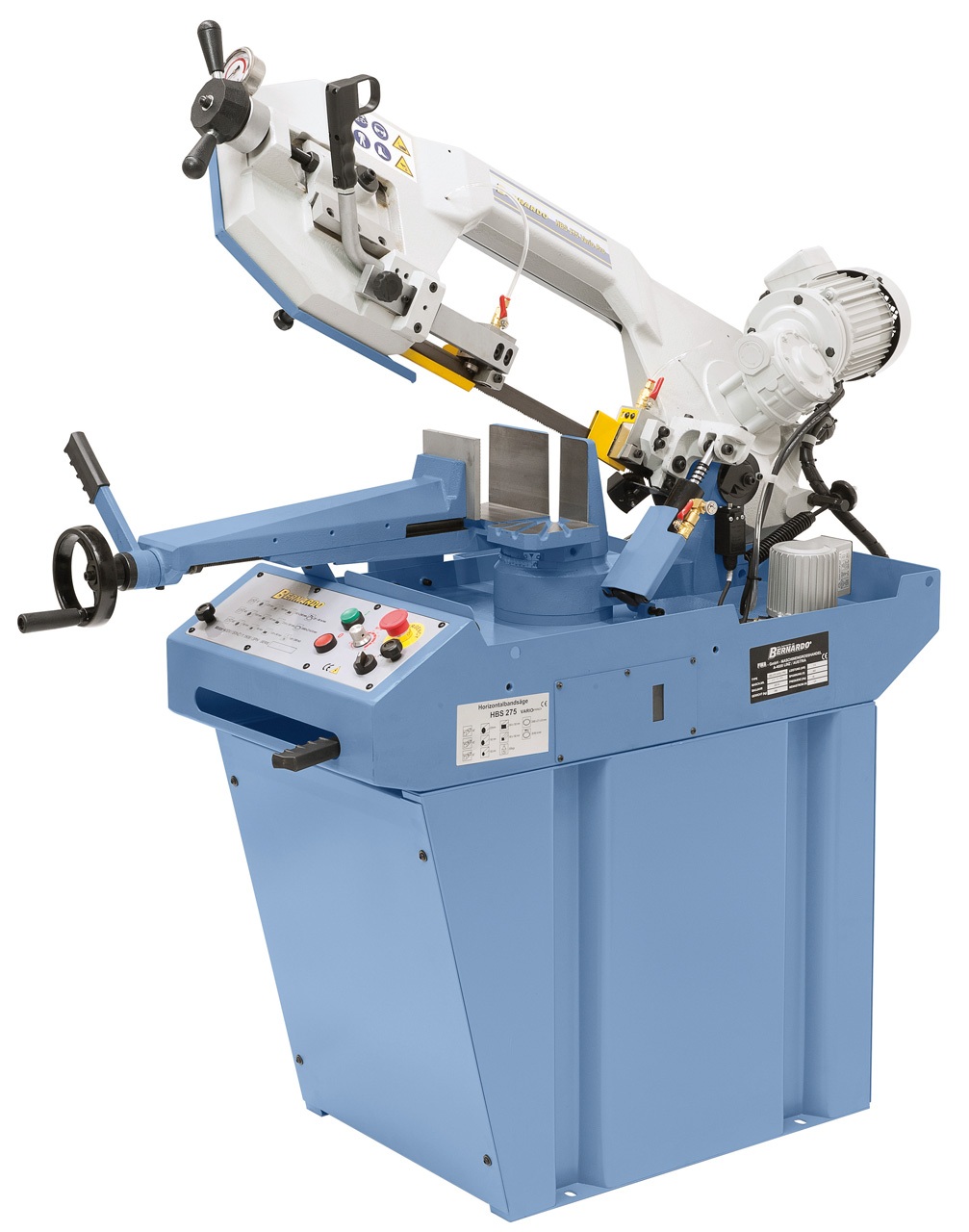

HBS 275 Vario PRO – 400 V – Horizontal Bandsaw

HBS 275 Vario PRO – 400 V – Horizontal Bandsaw

The HBS 275 Vario PRO is fully equipped with variable cutting speed, allowing ideal adjustment to various materials. Additionally this model comes complete with a bandsaw blade guiding with carbide inserts and integrated coolant device.

Standard accessories

  • Bandsaw blade
  • Material fence
  • Stand

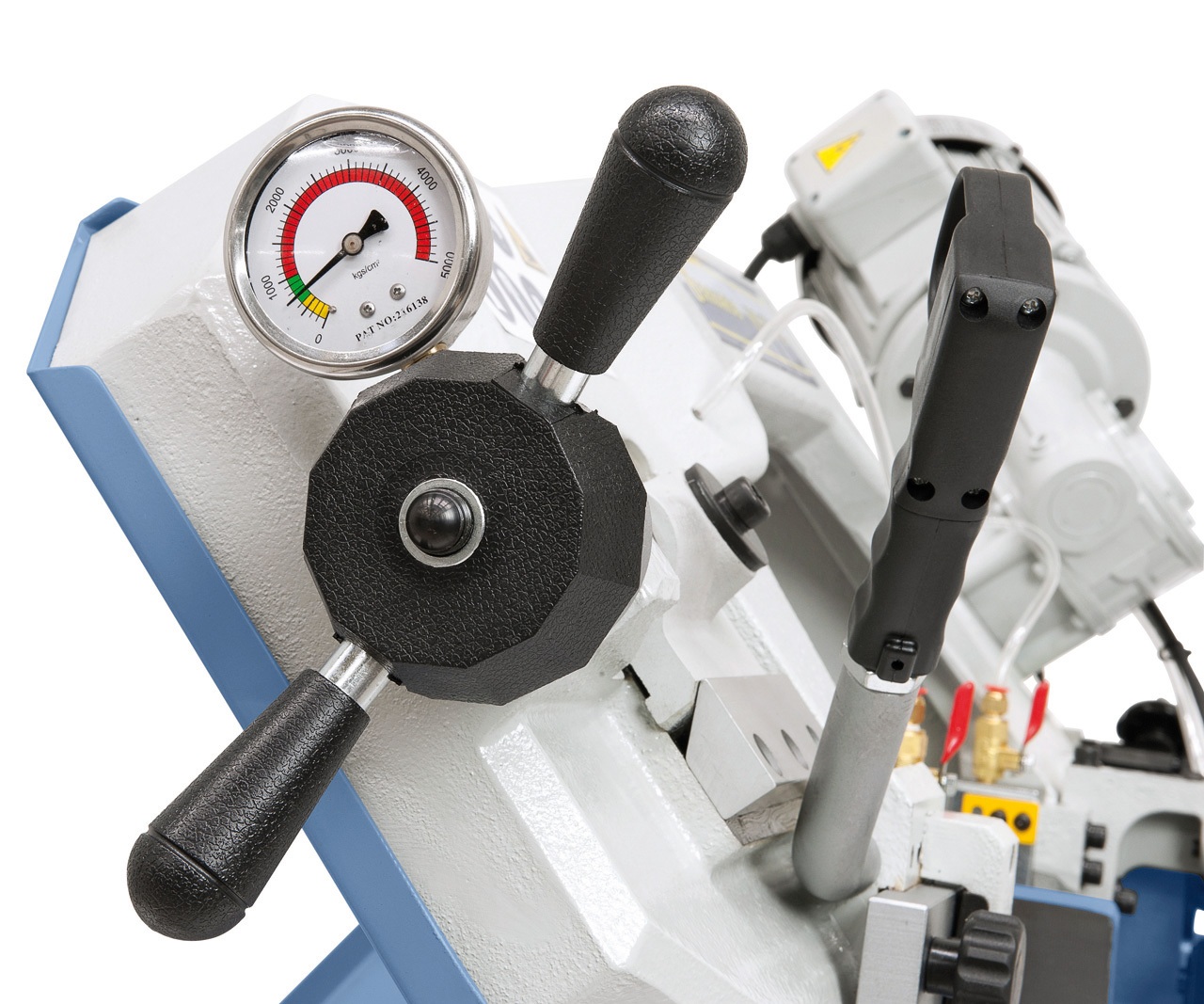

  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Vice with quick adjustment

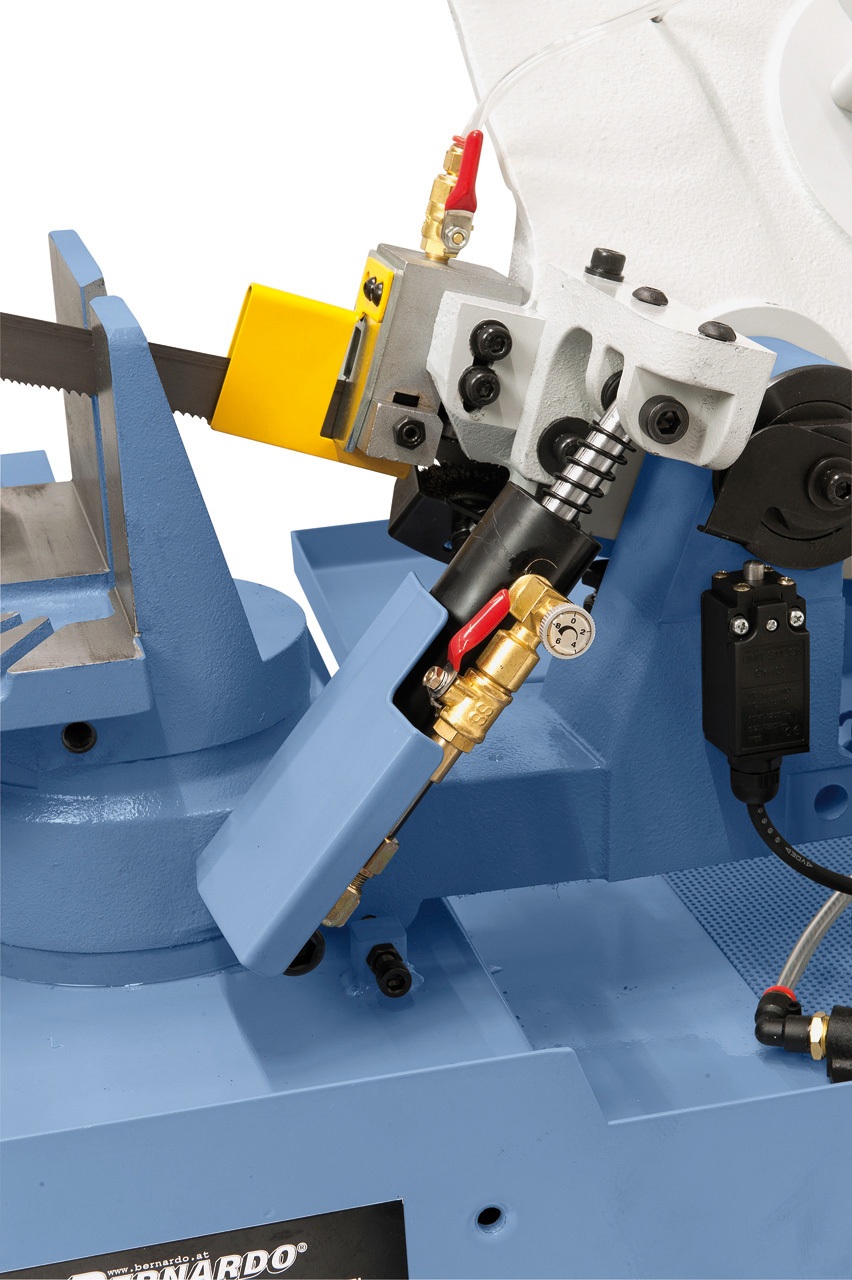

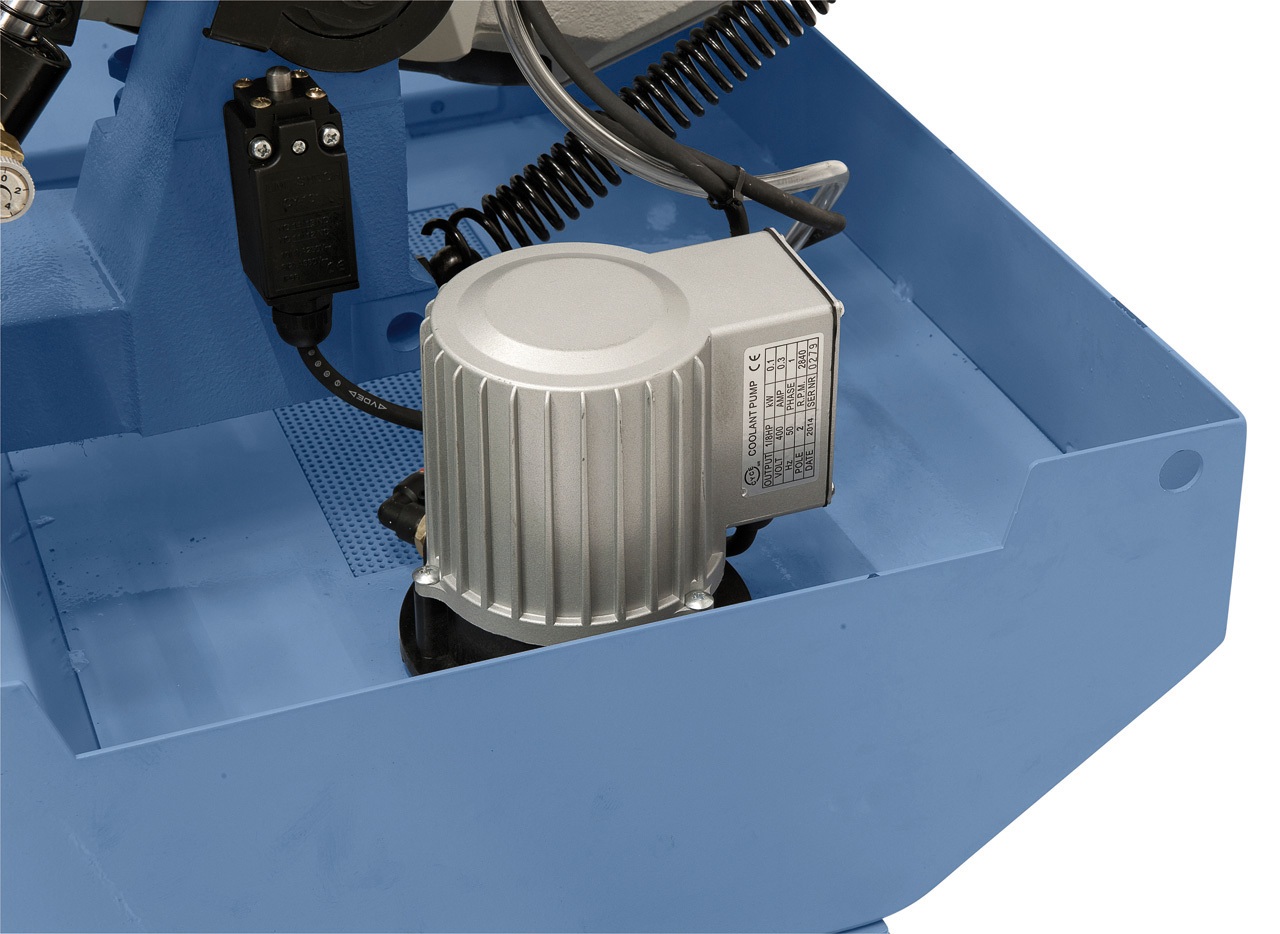

  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down

Description

Properties

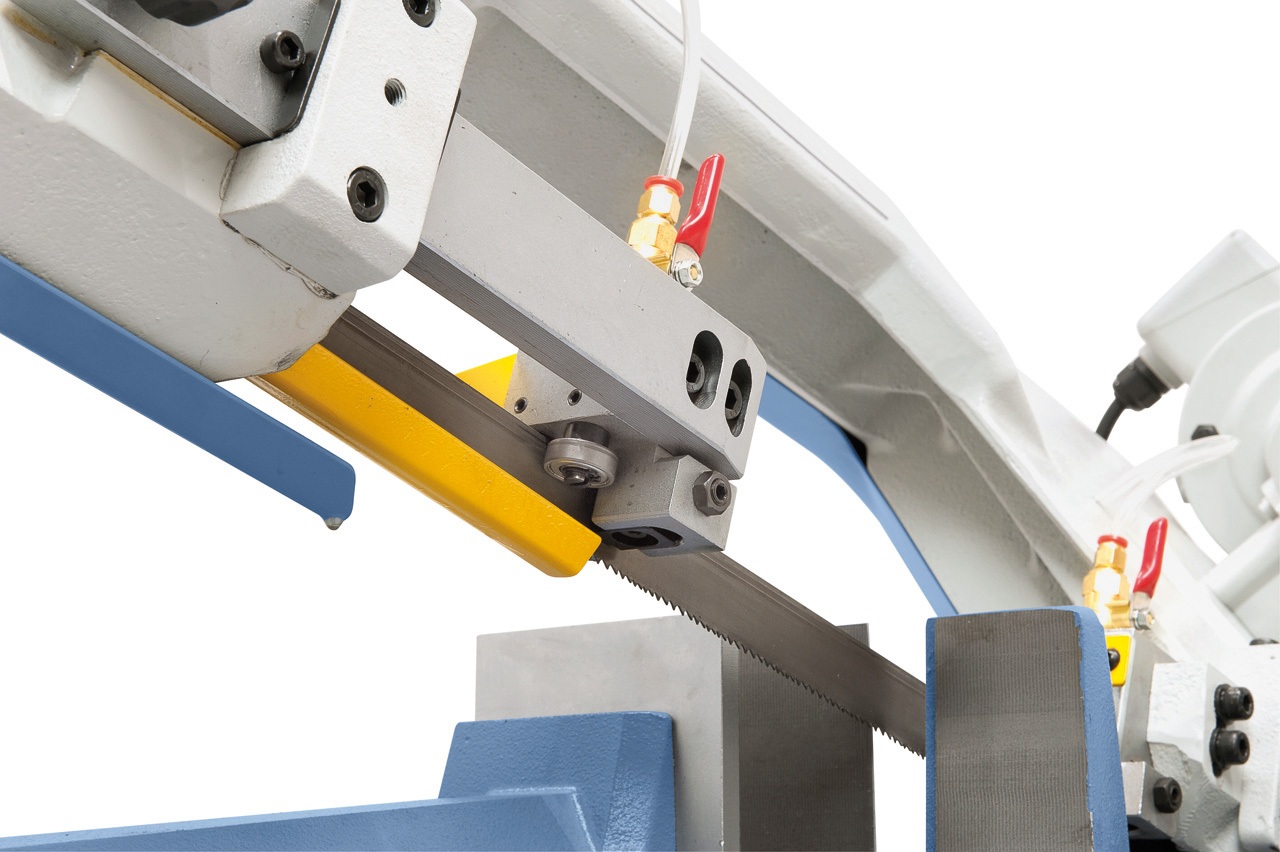

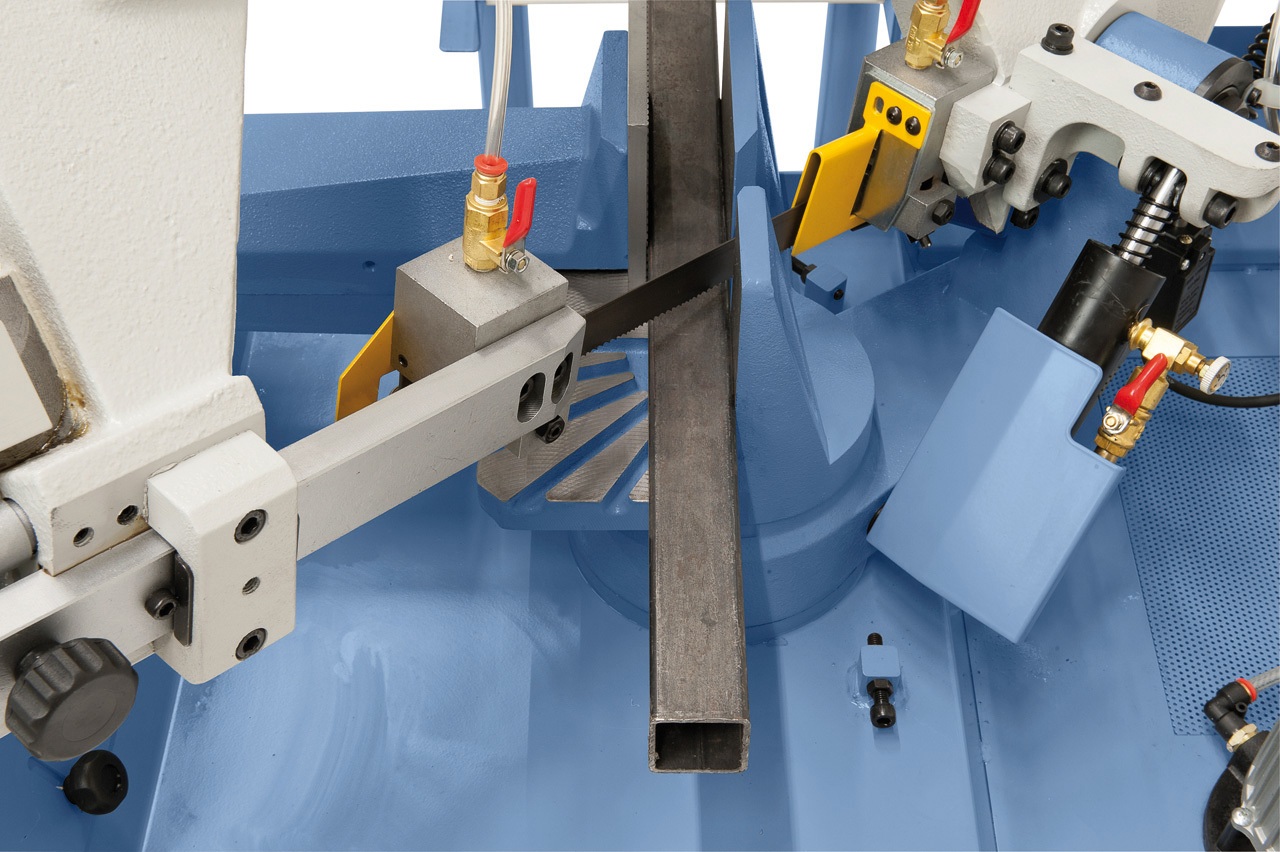

  • Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
  • Professional bandsaws for universal use at workshops, locksmith´s shops etc.
  • For cutting of hollow profile and full rivet material, stainless steel, tool steel,…
  • Torsion-free, strong spheroidal cast iron saw frame

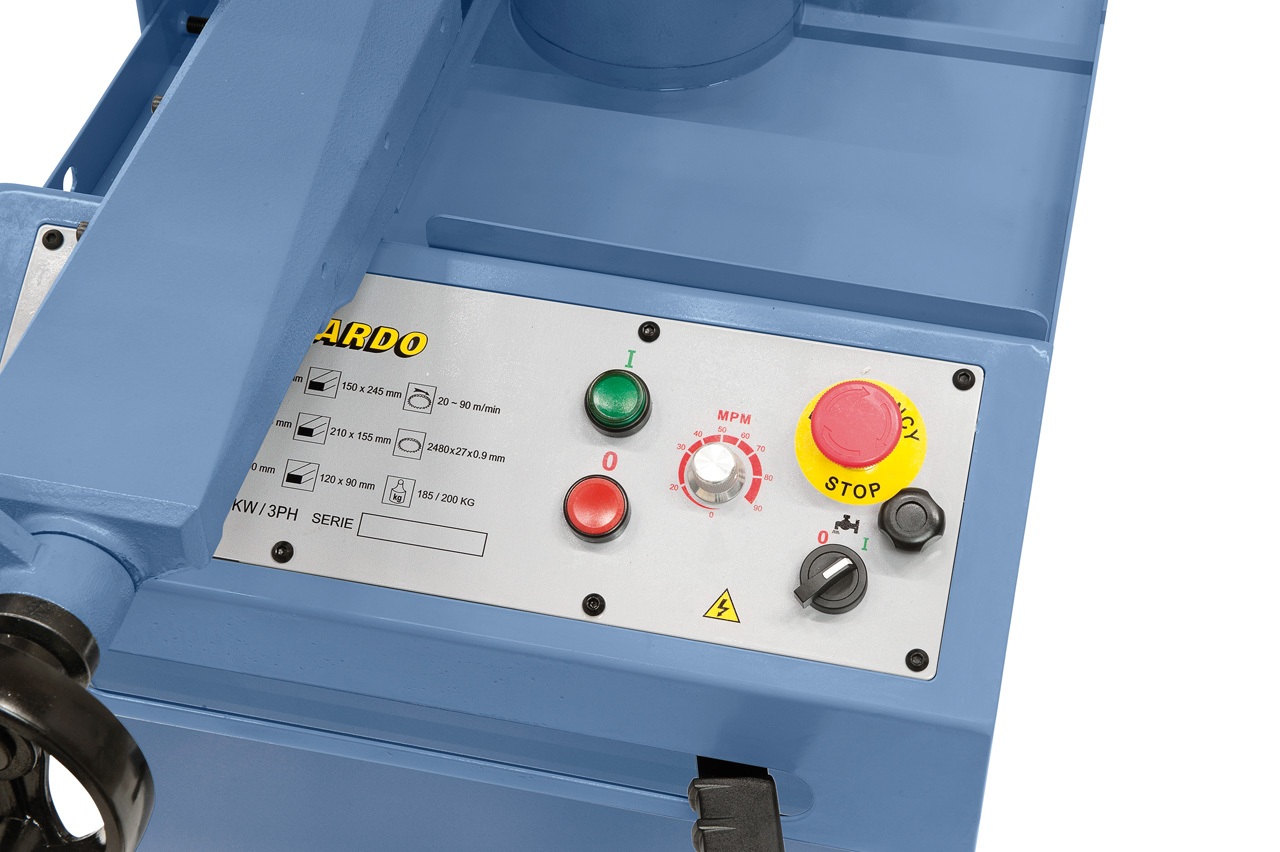

  • Easy adjustment of variable cutting speed
  • Saw frame pressure regulated by adjustable hydraulic cylinder
  • Drive features hardened and polished gear worm shaft and bronze worm wheel
  • Automatic shut-down at cutting end
  • Bandsaw blade guiding with quick adjustment to the workpiece , guarantees optimal cutting results

    Technical specifications

    Cutting capacity round 90° 225 mm
    Cutting capacity square 90° 200 x 200 mm
    Cutting capacity flat 90° 245 x 150 mm
    Cutting capacity round 45° 160 mm
    Cutting capacity square 45° 160 x 160 mm
    Cutting capacity round 60° 100 mm
    Cutting capacity square 60° 100 mm
    Working height 910 mm
    Bandsaw blade dimension 2480 x 27 x 0,9 mm
    Cutting speed, stepless 20 – 90 m/min
    Coolant pump 100 W
    Motor power output S1 100% 1,5 kW
    Voltage 400 V
    Machine dimension (L x D x H) 1430 x 720 x 1700 mm
    Weight approx. 185 kg
